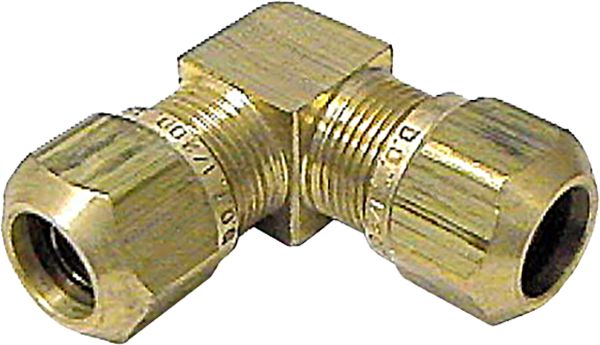

DOT Air Brake Compression Union Elbow for Nylon Tubing, Brass, 5/8 x 5/8", Tube x Tube
(Pack of 2)

Item#: 1511546

Lawson

• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together


Air Brake Heavy Duty Drain Cock Brass

Item#: 4977

DOT Compression Connector Male Brass 1/2 x 1/2"

Item#: 84272

DOT Compression Union Brass 5/8"

Item#: 84256

DOT Compression Connector Male Brass 1/4 x 1/4"

Item#: 84267

DOT Elbow Male 90° Brass 3/8 x 1/4-18

Item#: 57511

DOT Connector Male Brass 1/4 x 1/4-18

Item#: 91786

Hose Clamp 304 SS 3/4 to 1-3/4"

Item#: 86728

Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"

Item#: 97564

Non-Perforated Clamp 316 SS #4 7/16 to 11/16"

Item#: 58832

DOT Connector Male Brass 1/4 x 1/4-18

Item#: 57505

Z Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613

DOT Elbow Male Nylon 3/8 x 1/4-18

Item#: 91797

Vision Pro Super

Item#: DY21061040

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435

SAE Flat Washer Grade 8 Steel 1/4"

Item#: P11394

Swivel Head Ratchet 3/8 Drive

Item#: DY89310010

Nut Torq Tite Hex Flange, 1/4-20

Item#: DY02551300

SAE Flat Washer Grade 8 Steel 1/4"

Item#: P11394

Swivel Head Ratchet 3/8 Drive

Item#: DY89310010

Nut Torq Tite Hex Flange, 1/4-20

Item#: DY02551300

Product Description

• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Technical Specifications

Item#: 1511546
Manufacturer Model #: 84260
Fitting Type Compression - Nylon Tubing
Style DOT
Material Brass
Configuration Union Elbow
Connection Type A x B Tube x Tube
Fitting Dimension A 5/8 "
Fitting Dimension B 5/8 "
Type Compression
UNSPSC #: 25171700
TAA Compliant: No
Weight: 0.68 lb
