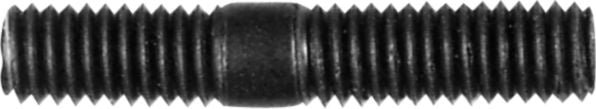

Home Automotive Hardware Dual End Threaded Stud 3/8 SAE x 3/8 USS 3"
Automotive Hardware

Dual End Threaded Stud, Medium Carbon Steel, Oil Finish, 3/8 SAE x 3/8 USS, Class 2A Thread, 3" Overall Length
(Pack of 10)

Lawson Products

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Read More
Check Availability

Catalog page#: 21-4

Frequently Bought Together


Dual Foot Tilt-Lock Air Chuck

Item#: 29042

Tubeless Tire Snap-In Valve 1-1/4"

Item#: 11011

Front Bumper Fascia Retainer Plastic 15mm

Item#: P53961

Tire Repair Inner Liner Sealer

Item#: 1417734

PZ Series Zinc Clip-On Wheel Weight 1-1/4oz

Item#: KT14852

PZ Series Zinc Clip-On Wheel Weight 3/4oz

Item#: KT14850

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728

MC Type Zinc Clip-On Wheel Weight 1/2oz

Item#: KT13471

PZ Series Zinc Clip-On Wheel Weight 1/2oz

Item#: KT11015

Steel Adhesive Wheel Weight 1/4oz

Item#: KT11029

Dual End Threaded Stud 1/2 SAE x 1/2 USS 3-1/2"

Item#: 10543

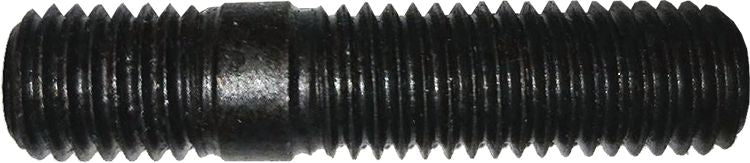

Dayton Wheel Rim Stud 5/8-11 x 2-3/4"

Item#: 30140

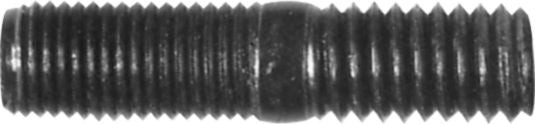

Dual End Threaded Stud 7/16 SAE x 7/16 USS 1-3/4"

Item#: 10525

Product Description

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Technical Specifications

Item#: 10520
Diameter 3/8 SAE x 3/8 USS
Overall Length 3 "
SAE Nut End 2 "
USS Hub End 11/16 "
Approximate Length 11/16 "
UNSPSC #: 25171900
TAA Compliant: Yes
Weight: 0.81 lb
