Home Automotive Hardware Dual End Threaded Stud 5/16 SAE x 5/16 USS 1"
Automotive Hardware

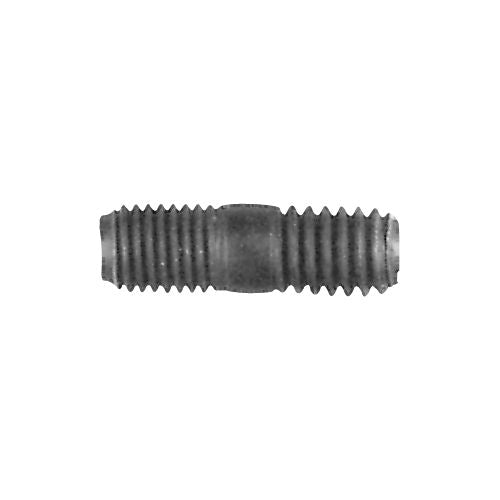

Dual End Threaded Stud, Medium Carbon Steel, Oil Finish, 5/16 SAE x 5/16 USS, Class 2A Thread, 1" Overall Length
(Pack of 10)

Lawson Products

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Read More
Check Availability

Catalog page#: 21-4

Frequently Bought Together


Splash Shield and Fascia Retainer Nylon 1"

Item#: P80658

MCN Series Lead Clip-On Wheel Weight 1 oz

Item#: P44736

MCN Series Lead Clip-On Wheel Weight 1/4 oz

Item#: P44682

Front and Rear Bumper Fascia Retainer Plastic 1"

Item#: P20118

Shroud Insulating Button Nylon 11/16"

Item#: P21462

Bumper Cover and Fender Shield Push-Type Retainer

Item#: KT13459

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435

Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102

Superbutt Connector 22 to 18 AWG Red

Item#: 94727

P Series Lead Clip-On Wheel Weight 2-1/4oz

Item#: P47455

TN Series Lead Clip-On Wheel Weight 1-3/4oz

Item#: P33402

PZ Series Zinc Clip-On Wheel Weight 1oz

Item#: KT14851

Dual End Threaded Stud 1/4 SAE x 5/16 USS 1"

Item#: 10505

Dual End Threaded Stud 1/4 SAE x 1/4 USS 2-1/2"

Item#: 10504

Dual End Threaded Stud 7/16 USS x 7/16 USS 1-3/4"

Item#: 10532

Product Description

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Technical Specifications

Item#: 10506
Diameter 5/16 SAE x 5/16 USS
Overall Length 1 "
SAE Nut End 7/16 "
USS Hub End 3/8 "
Approximate Length 3/8 "
UNSPSC #: 25171900
TAA Compliant: Yes
Weight: 0.2 lb
