Home Hydraulics Fittings Brass Dubl-Barb Elbow Brass 90° 1/2 x 1/2"
Brass

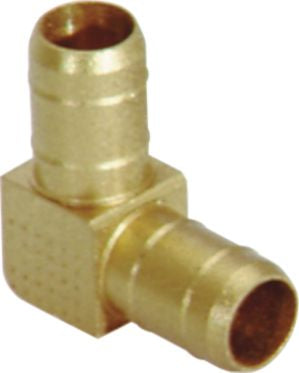

Dubl-Barb Elbow, Brass, 90°, 1/2" x 1/2", Tube x Tube, 100PSI
(Pack of 10)

Item#: 86705

Lawson

• Fittings grip as tubing is moved
• Pressure: Up to 150 PSI on 5/32" to 3/8" tubing; up to 100 PSI on 1/2" tubing
• Temperature ranges: –65°F to +90°F (–54°C to +32°C) for 5/32", 1/4" and 3/8" tubing; –65°F to +75°F (–54°C to +24°C) for 1/2" tubing
• Use with polyethylene tubing
• Can be used with environmental control systems

Read More
Check Availability

Catalog page#: 9-19

Frequently Bought Together


Pipe Hex Nipple Brass 3/8-18 x 1/4-18

Item#: 5296

Pipe Adapter Brass 3/8-18 x 1/2-14

Item#: 5281

Forged Body Ball Valve Brass 1/4-18 x 1/4-18

Item#: 63134

Hex Head Plug Brass 1/8-27 Male NPT

Item#: 5362

Forged Body Ball Valve Brass 3/4 x 3/4"

Item#: 63137

Pipe Close Nipple Brass 3/8-18 x 3/8-18

Item#: 5299

Z Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613

DOT Elbow Male Nylon 3/8 x 1/4-18

Item#: 91797

Pipe Coupling Brass 3/8-18 x 3/8-18

Item#: 5290

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983

Product Description

• Fittings grip as tubing is moved
• Pressure: Up to 150 PSI on 5/32" to 3/8" tubing; up to 100 PSI on 1/2" tubing
• Temperature ranges: –65°F to +90°F (–54°C to +32°C) for 5/32", 1/4" and 3/8" tubing; –65°F to +75°F (–54°C to +24°C) for 1/2" tubing
• Use with polyethylene tubing
• Can be used with environmental control systems

Technical Specifications

Item#: 86705
Fitting Type Dubl-Barb
Angle 90 °
Configuration Elbow
Material Brass
Connection Type A x B Tube x Tube
Fitting Dimension A 1/2 "
Fitting Dimension B 1/2 "
Tube Inside Diameter B 3/8 "
Tube Inside Diameter A 3/8 "
Working Pressure 100 PSI
Temperature Range -65 to 75 F
Length 1-1/64 "
UNSPSC #: 40170000
TAA Compliant: Yes
Weight: 0.32 lb
