Home Fasteners Flange Locknut Grade 8 Alloy Steel 5/8-11
Fasteners

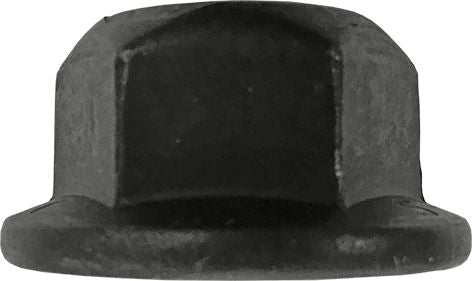

Flange Locknut, Grade 8, Alloy Steel, Black Phosphate Finish, Coarse Thread, 15/16" Across Flats, 0.690" Thickness, 5/8-11
(Pack of 25)

Item#: 1586911

Lawson Products

• 30% stronger than standard nuts
• Eliminates the need for assembling washers
• Meets IFI-107 Specifications – Class 2B thread
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut or on the flange
• Designed for use with 150,000 PSI flange bolt applications

Read More
Check Availability

Catalog page#: 3-59

Frequently Bought Together


Flat Washer Grade 12 Thru-Hardened Steel M6

Item#: 87508

Hex Nut Grade 5 Steel 5/16-18

Item#: FA95678

Hex Nut Grade 5 Steel 1/2-13

Item#: FA95681

DIN 985 Locknut with Nylon Insert Grade 8 M10-1.5

Item#: 82270

Flange Locknut Grade 8 Alloy Steel 5/8-18

Item#: 85823

DIN 980V Top Locknut Grade 10 M16-2

Item#: 87504

Hex Nut Thick Grade 12 Alloy Steel M6-1

Item#: 98689

Hex Nut Thick Grade 12 Alloy Steel M8-1.25

Item#: 98690

Locknut with Nylon Insert 18-8 SS 3/8-16

Item#: 91395

SAE J995C Locknut with Nylon Insert Grade A 3/8-16

Item#: 303

Top Locknut Grade C 3/4-10

Item#: 80934

Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 3/4"

Item#: 601

Superbutt Connector 22 to 18 AWG Red

Item#: 94727

Master Series Penlight Flashlight

Item#: 1635602

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104

Product Description

• 30% stronger than standard nuts
• Eliminates the need for assembling washers
• Meets IFI-107 Specifications – Class 2B thread
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut or on the flange
• Designed for use with 150,000 PSI flange bolt applications

Technical Specifications

Item#: 1586911
Diameter 5/8 "
Thread Pitch 11
Grade 8
Finish Black Phosphate
Type Flange Lock Nut
Material Alloy Steel
Thickness 0.690 "
Across Flats 15/16 "
Thread Coarse
Specifications IFI 100/107
Quantity Per Package 25.0000
Flange Diameter 1.330 "
UNSPSC #: 31161712
TAA Compliant: No
Weight: 2.91 lb
