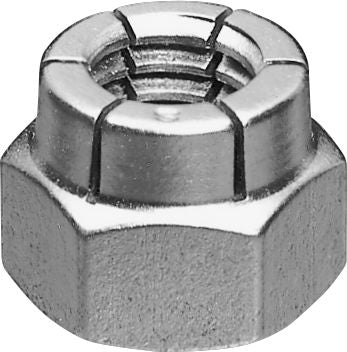

Flex Locknut, Grade C, Alloy Steel, Cadmium Finish, Fine Thread, 3/4" Across Flats, 1/2-20
(Pack of
10)
• Locking torque retained for up to 15 uses
• No galling of threads
• Cadmium-plated
• Can be used in temperatures up to 450°F (232°C)
• For use in applications up to 180,000 PSI tensile strength
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 1/4"
Item#: 88445
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Item#: 88447
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Item#: 88446
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Item#: 53981
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Item#: 80933
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Item#: 53980
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Item#: 53981
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Item#: 80933
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Item#: A102
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Item#: 94613
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Item#: 94611
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Item#: 94612
Couldn't load pickup availability
Self-Drilling Screw Slotted Hex Head #12 x 1"
Item#: P29226
Couldn't load pickup availability
USS Flat Washer Steel 1/4"
Item#: BC501
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 5/16-18
Item#: DY02551700
Couldn't load pickup availability
Product Description
• Locking torque retained for up to 15 uses• No galling of threads
• Cadmium-plated
• Can be used in temperatures up to 450°F (232°C)
• For use in applications up to 180,000 PSI tensile strength
Technical Specifications
| Item#: | 50798 |
|---|---|
| Diameter | 1/2 " |
| Thread Pitch | 20 |
| Grade | C |
| Finish | Cadmium |
| Type | Flex Lock Nut |
| Material | Alloy Steel |
| Across Flats | 3/4 " |
| Thread | Fine |
| Size | 1/2-20 |
| Maximum Temperature | 450º F |
| Proof | 180,000 PSI |
| UNSPSC #: | 31161716 |
| TAA Compliant: | Yes |
| Weight: | 0.42 lb |
Product Restrictions
