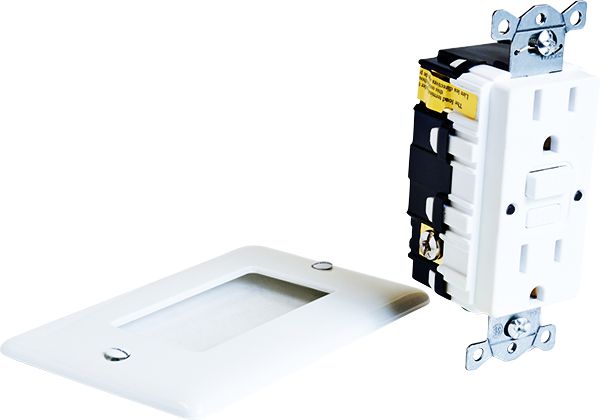

Ground Fault Receptacle 15A 125V White
(Pack of
1)
• Built-in LED light test feature indicates if the ground fault circuit is functioning; LED light is normally off
• Designed with safety in mind; if the line and load wires are miswired, there is no power to the face of the outlet or downstream, and the unit will not be able to reset
• Meets the requirements of new UL 943 standard effective 7/28/06
• Superior surge protection: 50 joules/250V over voltage capability, and resistant to nuisance tripping
Test Procedure: With the receptacle properly wired, press the test button. If the GFCI circuit is functional, the LED light will be OFF and the reset button will pop out. Press the reset button to re-energize. If the GFCI circuit is NOT functional, the LED light flashes red and the reset button does not pop out, indicating the receptacle should be replaced.
Frequently Bought Together
Connector Housing 20A 2-Wire Tower
Couldn't load pickup availability
Extension Cord Tri-Tap Adapter 15A 125V
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Industrial Duty Connector 10/15A 250/125V
Couldn't load pickup availability
Toggle Switch AC Single Pole 15A 120V Brown
Couldn't load pickup availability
Industrial Duty Connector 20A 125V
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
Toggle Switch SPDT 25A 12VDC
Couldn't load pickup availability
Miniature Toggle Switch SPDT 6A 125V On-None-On
Couldn't load pickup availability
Weather Protected Plug Boot 2 Pole 3 Wire 30A 250V
Couldn't load pickup availability
Product Description
• Built-in LED light test feature indicates if the ground fault circuit is functioning; LED light is normally off• Designed with safety in mind; if the line and load wires are miswired, there is no power to the face of the outlet or downstream, and the unit will not be able to reset
• Meets the requirements of new UL 943 standard effective 7/28/06
• Superior surge protection: 50 joules/250V over voltage capability, and resistant to nuisance tripping
Test Procedure: With the receptacle properly wired, press the test button. If the GFCI circuit is functional, the LED light will be OFF and the reset button will pop out. Press the reset button to re-energize. If the GFCI circuit is NOT functional, the LED light flashes red and the reset button does not pop out, indicating the receptacle should be replaced.
Technical Specifications
| Item#: | 15508 |
|---|---|
| Style | LED Ground Fault Receptacle |
| Volts | 125 |
| NEMA Configuration | 5-15R |
| Color | White |
| Approvals | UL 943 Standard, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | No |
| Weight: | 0.37 lb |
