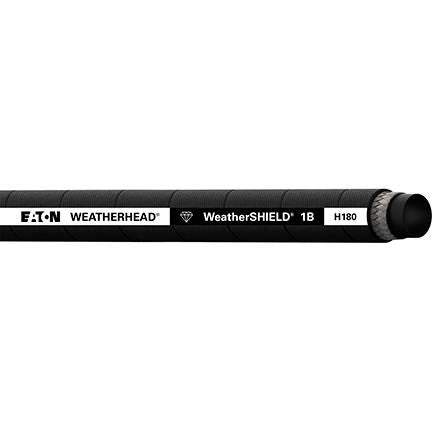

H180 WeatherSHIELD™ Hydraulic Hose 1.02" x 50'
(Pack of
50.0)
• Dura-Tuff premium abrasion resistant hose cover offers 8x greater abrasion resistance than industry standard
• Agency Rating: SAE 100R17, SAE 100 R1 and EN857 1SC Performance
• Fittings Certified: Z-Series
• Agency Approval: MSHA, ABS, DNV and USCG
• Construction:
– Inner Tube: Nitrile
– Reinforcement: One steel braid
– Cover: Dura-Tuff Premium Abrasion Resistance
• Operating Temperature Range: –50°F to +260°F (–46°C to +127°C)
• Application Notes: Petroleum and fire-resistant hydraulic fluids, fuel and lubricating oils, gasoline, water and other industrial fluids
Frequently Bought Together
3TR18CT Hydraulic Thermoplastic Hose 0.48" x 50'
Couldn't load pickup availability
3TR8 Hydraulic Thermoplastic Hose 0.90" x 50'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.82" x 50'
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 1/2" x 3/4-14
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 1/2-14
Couldn't load pickup availability
Pipe Coupling Brass 1/8-27 x 1/8-27
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 13/16 to 1-1/2"
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 1" x 6'
Couldn't load pickup availability
Avagard PVC Water Hose Assembly 5/8" x 100'
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Product Description
• Dura-Tuff premium abrasion resistant hose cover offers 8x greater abrasion resistance than industry standard• Agency Rating: SAE 100R17, SAE 100 R1 and EN857 1SC Performance
• Fittings Certified: Z-Series
• Agency Approval: MSHA, ABS, DNV and USCG
• Construction:
– Inner Tube: Nitrile
– Reinforcement: One steel braid
– Cover: Dura-Tuff Premium Abrasion Resistance
• Operating Temperature Range: –50°F to +260°F (–46°C to +127°C)
• Application Notes: Petroleum and fire-resistant hydraulic fluids, fuel and lubricating oils, gasoline, water and other industrial fluids
Technical Specifications
| Item#: | 1560030 |
|---|---|
| Industrial/Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category/Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R17 |
| Industry Rating 2 | EN8577 Type 1SC |
| Industry Rating | MSHA, ABS, DNV and USCG |
| Manufacturer Series Number | H180 |
| Manufacturer Series Name | H180 |
| I.D. | 3/4 (-12) " |
| Hose O.D. | 1.02 " |
| Working Pressure | 2,000 PSI |
| Burst Pressure | 8,000 PSI |
| Fitting Series | Z Series |
| Bend Radius | 4.72 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Steel Braid |
| Hose Cover Material | Dura-Tuff Premium Abrasion Resistance |
| Temperature | High |
| Minimum Temperature | -50 F |
| Maximum Temperature | 260 F |
| Length | 50 ft |
| Dash Size | -12 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 19.9518 lb |
Product Restrictions
