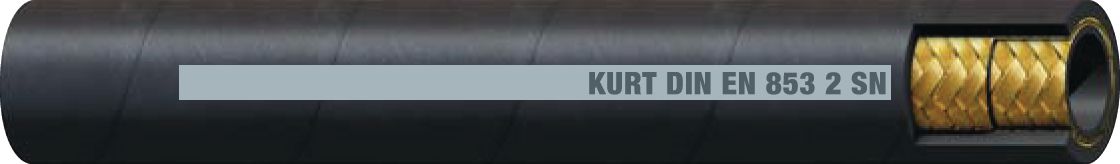

SAE R2S Hydraulic Hose, Rubber, 2-Steel Braided, 1/4" ID, 0.59" OD, 250' Length, 4" Bend Radius, 5750PSI
(Pack of
250)
SKU:1562969 Item#: 1562969
• Agency Ratings: SAE 100R2S, EN 853 2SN
• Fittings Certified: Kurt braided hose fittings
• Agency Approval: MSHA
• Construction:
– Inner Tube: Synthetic rubber
– Reinforcement: Two high tensile steel wire braids
– Cover: Abrasion-, ozone- and weather-resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Recommended for low- and medium-pressure hydraulic oil lines
Couldn't load pickup availability
Catalog page#: 8-54
Frequently Bought Together
MXT Hydraulic Hose Rubber 0.68" x 400'
Couldn't load pickup availability
EC215 Winner Hydraulic Hose Rubber 0.53" x 250'
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.8" x 330'
Couldn't load pickup availability
Hydraulic Plug, 9/16-18"(06) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.468 x 0.078"
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/8-27
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.68" x 400'
Couldn't load pickup availability
EC215 Winner Hydraulic Hose Rubber 0.53" x 250'
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.8" x 330'
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R2S, EN 853 2SN• Fittings Certified: Kurt braided hose fittings
• Agency Approval: MSHA
• Construction:
– Inner Tube: Synthetic rubber
– Reinforcement: Two high tensile steel wire braids
– Cover: Abrasion-, ozone- and weather-resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Recommended for low- and medium-pressure hydraulic oil lines
Technical Specifications
| Item#: | 1562969 |
|---|---|
| Manufacturer Model #: | R2S-04 (250) |
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R2S |
| Industry Rating 2 | EN 853 2SN |
| Industry Rating | MSHA |
| Manufacturer Series Number | SAE R2S |
| Manufacturer Series Name | Kurt |
| I.D. | 1/4 (-4) " |
| Hose O.D. | 0.59 " |
| Working Pressure | 5,750 PSI |
| Burst Pressure | 23,000 PSI |
| Fitting Series | Kurt Braided Hose Fittings |
| Bend Radius | 4 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Synthetic Rubber |
| Material | Hydraulic Oil |
| Temperature Range | -40F to +212F (+250F Max) |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 62.0 lb |
