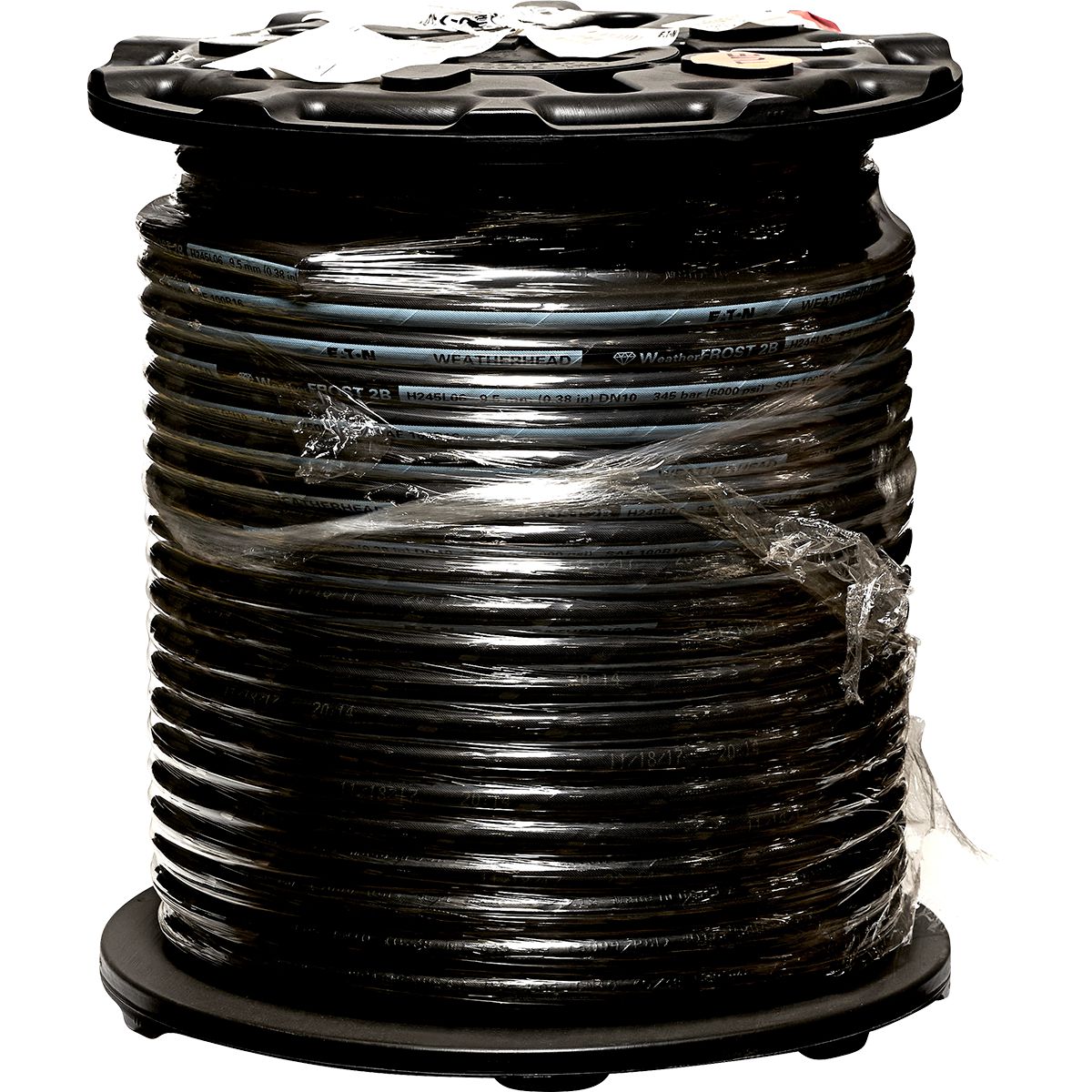

Weatherhead H245L WeatherFROST™ Hydraulic Hose, Rubber, 2-Steel Braided, 3/8" ID, 250' Length, 5000PSI, SAE100R16, EN857 Type 2SC
(Pack of
250)
SKU:1426743 Item#: 1426743
• Agency Ratings: SAE 100R16 Type S, EN 857 Type 2SC
• Fittings Certified: Z-Series
• Agency Approvals: MSHA accepted cover
• Construction:
– Inner Tube: Exclusive low temperature compound
– Reinforcement: Two steel braids
– Cover: WeatherSHIELD™ – eight times better abrasion resistance
• Temperature Range:70°F to +212°F (–57°C to +100°C)
• Application Notes:
– Low temperature flexing in hydraulic system service, used with petroleum and water based fluids
– Provides higher pressure ranges than H245 with equal flexibility
– WeatherSHIELD™ cover provides 8 times the abrasion resistance of standard neoprene cover
– Upgraded pressure ratings
Frequently Bought Together
Weatherhead H280 Hydraulic Hose Rubber 1.09" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.69" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 50'
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 11/16-16
Couldn't load pickup availability
Hydraulic Plug, 3/4-16"(08) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 3/4-16
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 1.09" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.69" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 50'
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R16 Type S, EN 857 Type 2SC• Fittings Certified: Z-Series
• Agency Approvals: MSHA accepted cover
• Construction:
– Inner Tube: Exclusive low temperature compound
– Reinforcement: Two steel braids
– Cover: WeatherSHIELD™ – eight times better abrasion resistance
• Temperature Range:70°F to +212°F (–57°C to +100°C)
• Application Notes:
– Low temperature flexing in hydraulic system service, used with petroleum and water based fluids
– Provides higher pressure ranges than H245 with equal flexibility
– WeatherSHIELD™ cover provides 8 times the abrasion resistance of standard neoprene cover
– Upgraded pressure ratings
Technical Specifications
| Item#: | 1426743 |
|---|---|
| Manufacturer Model #: | H245L06-250R |
| Industry Rating 1 | SAE 100R16 |
| Industry Rating 2 | EN857 Type 2SC |
| I.D. | 3/8 (-06) " |
| Hose O.D. | 11/16 " |
| Working Pressure | 5,000 PSI |
| Burst Pressure | 20,000 PSI |
| Fitting Series | Z series |
| Bend Radius | 2.5 " |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 88.0 lb |
