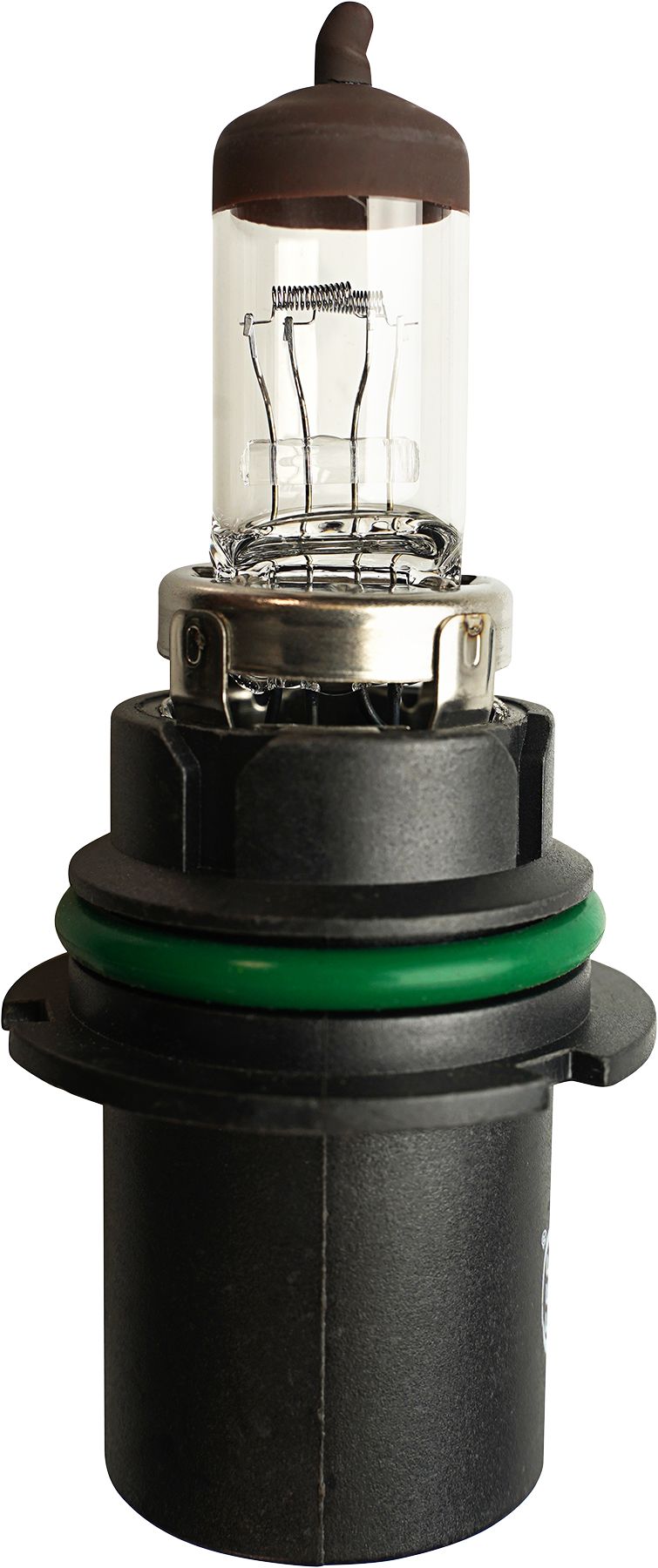

Headlamp Capsule, Halogen Miniature Bulb, Lower/Upper Beam, 45/65 Watts at 12.8 Volts, P29t Base, 640/300 Life Hours
(Pack of
1)
SKU:28474 Item#: 28474
• Used in many new aerodynamic headlamps for automobiles and trucks
WARNING: These capsules contain gas under pressure. They should be grasped only by the plastic base to avoid shattering.
Couldn't load pickup availability
Catalog page#: 19-15
Frequently Bought Together
H3 Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 0.5CP
Couldn't load pickup availability
Miniature Incandescent Bulb 24V 32CP
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Clear
Couldn't load pickup availability
MINI Fuse 15A Blue
Couldn't load pickup availability
Heat Shrink Tubing 18 to 12 AWG Black
Couldn't load pickup availability
H3 Halogen Miniature Bulb 35W 12V
Couldn't load pickup availability
Vision Pro Mini-Compact Work Light
Couldn't load pickup availability
Pen Flashlight 150 Lumen
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Product Description
• Used in many new aerodynamic headlamps for automobiles and trucksWARNING: These capsules contain gas under pressure. They should be grasped only by the plastic base to avoid shattering.
Technical Specifications
| Item#: | 28474 |
|---|---|
| Type | Miniature |
| Light Source | Halogen |
| Volts | 12.8 |
| Watts | 45/65 |
| Watts at 12.8 Volts | 45 Lower Beam; 65 Upper Beam |
| Base Type | P29t |
| Life Expectancy | 640/300 |
| Candlepower | 475 |
| Industry Number | 9004LL |
| UNSPSC #: | 25172901 |
| TAA Compliant: | No |
| Weight: | 0.1 lb |
