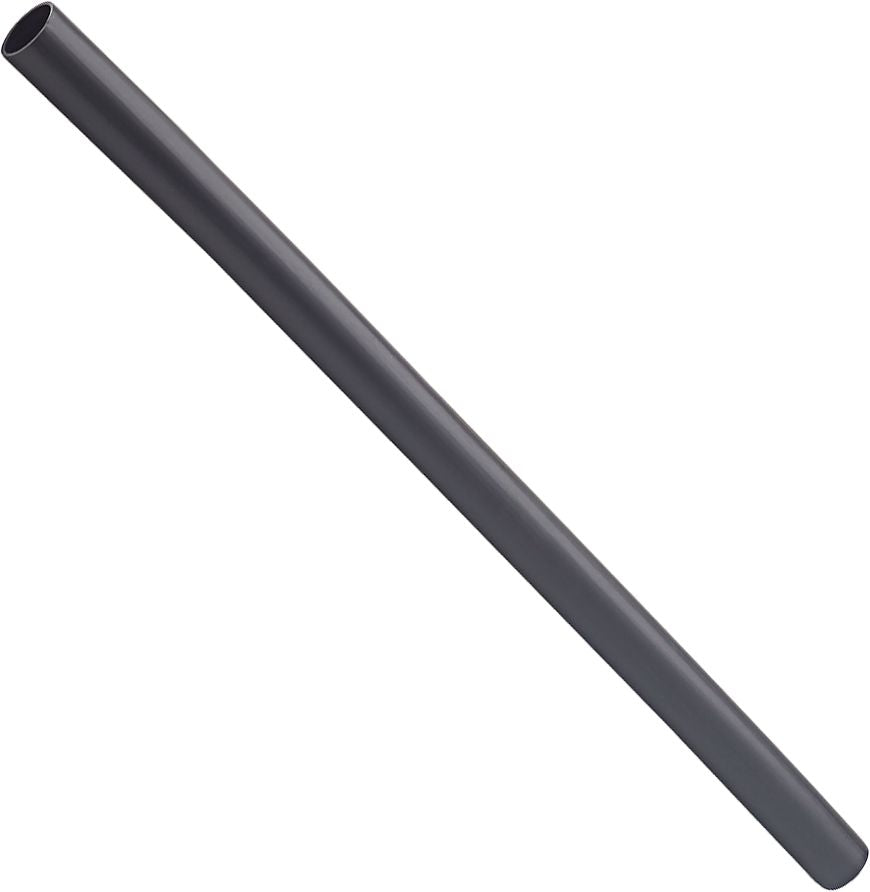

Heat Shrink Tubing, 18 to 12 AWG, Black, 6" Length, 0.25" ID Before and 0.08" ID After Shrinkage, 2.5:1 Shrink Ratio
(Pack of 10)

Item#: 51880

Lawson Products

• 2.5:1 shrink ratio
• Medium wall thickness fills the void between thin wall and heavy wall tubing
• Outer wall of tubing is high grade polyolefin with an inner wall of adhesive sealant
• Heat-activated sealant provides moisture-tight seal
• 6" lengths
• Meets MIL-1-23053/4 Specification
• Dielectric strength: 1,000V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 230°F (110°C)
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Rated at 600V
• Tensile strength: 2,600 PSI
• Elongation: 450%
• Volume resistivity: 106 Ohm/cm
• Heat shock: 168 hours at 482°F (250°C)
• Longitudinal change: Less than 10%
• Jacket is flame-retardant
• Secant modulus: 16,000 PSI
• Perfect for light-duty applications where heavy wall isn’t needed
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.

Read More
Check Availability

Catalog page#: 17-33

Frequently Bought Together


Stepdown Butt Connector 24 to 22/22 to 18 AWG

Item#: 1495187

Jackpot Cherry Hand Cleaner with Pumice 1gal

Item#: 28651

MINI Fuse 15A Blue

Item#: 95703

Tru-Shrink Heat Shrink Tubing 8 to 1 AWG Black

Item#: 86503

Stylus Pro Reach® Flashlight LED 2x AAA

Item#: 1328131

ATO/ATC Fuse 20A Yellow

Item#: 83028

DOT Swivel Elbow Male 90° Brass 1/2 x 1/4-18

Item#: 28980

DOT Connector Female Brass 3/8 x 3/8-18

Item#: 27222

DOT Connector Female Brass 1/4 x 1/8-27

Item#: 27219

Tru-Shrink Heat Shrink Tubing 18 to 14 AWG Red

Item#: 99995

Heat Shrink Tubing 16 to 14 AWG Clear

Item#: P25290

3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube

Item#: DY21880008

Self-Drilling Screw Hex Head #10-16 x 3/4"

Item#: 84931

Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper

Item#: DY89310247

Hex Nut Grade 5 Steel 3/8-16

Item#: FA95679

Heat Shrink Tubing 20 to 14 AWG Black

Item#: 51879

Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud

Item#: 1495166

DOT Union Brass 1/2 x 1/2"

Item#: 57501

Adhesive Heat Shrink Tubing 22 to 10 AWG Clear/Red

Item#: 16324

Split Wire Loom Polyethylene Black 0.35" ID 25'

Item#: 97359

Split Wire Loom Polyethylene Black 0.413" ID 25'

Item#: 97360

Product Description

• 2.5:1 shrink ratio
• Medium wall thickness fills the void between thin wall and heavy wall tubing
• Outer wall of tubing is high grade polyolefin with an inner wall of adhesive sealant
• Heat-activated sealant provides moisture-tight seal
• 6" lengths
• Meets MIL-1-23053/4 Specification
• Dielectric strength: 1,000V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 230°F (110°C)
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Rated at 600V
• Tensile strength: 2,600 PSI
• Elongation: 450%
• Volume resistivity: 106 Ohm/cm
• Heat shock: 168 hours at 482°F (250°C)
• Longitudinal change: Less than 10%
• Jacket is flame-retardant
• Secant modulus: 16,000 PSI
• Perfect for light-duty applications where heavy wall isn’t needed
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.

Technical Specifications

Item#: 51880
Type Pre-Cut
Style Dual Wall
Wire Gauge Coverage 18-12 AWG
Length 6 "
Color Black
I.D. Before Shrinkage .250 "
I.D. After Shrinkage .080 "
Shrink Ratio 2.5 to 1
Wall Thickness After Shrinkage 0.047 "
Dielectric Strength 1000 V/mm
Voltage Rating 600 V
Elongation 450 %
Tensile Strength 2,600 PSI
Heat Shock 168 hours at 482 degrees F
Secant Modulus 16,000 PSI
Longitudinal Change Less than 10%
Approvals Meets MIL-1-23053/4 Specification
UNSPSC #: 39121723
TAA Compliant: Yes
Weight: 0.04 lb
