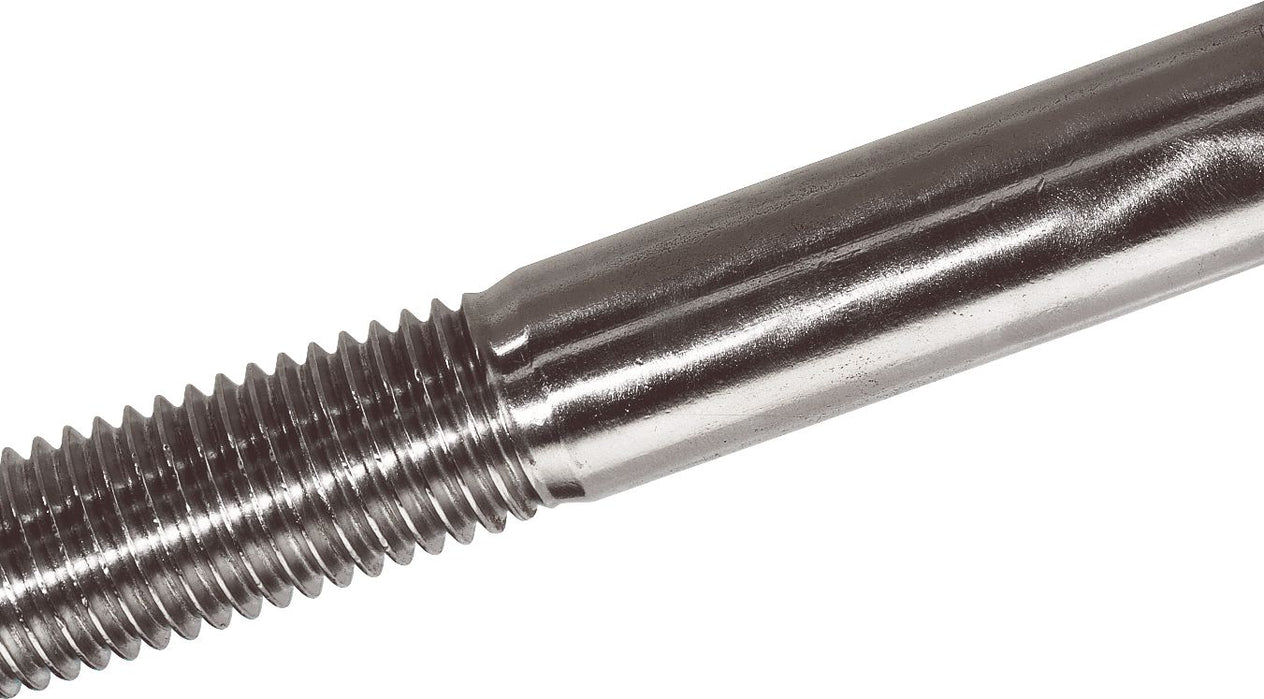

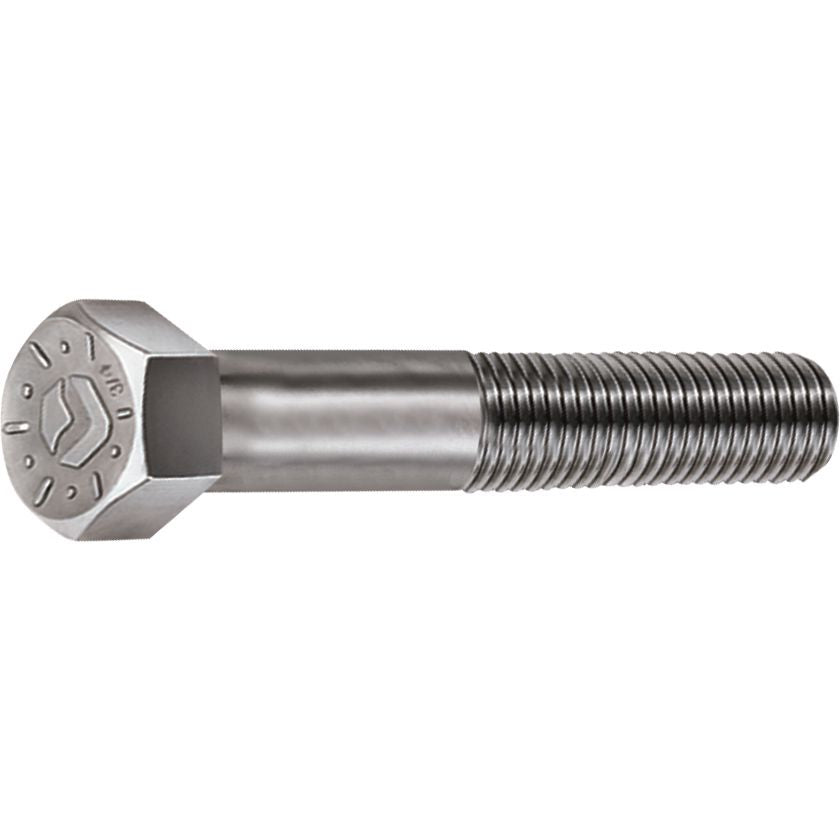

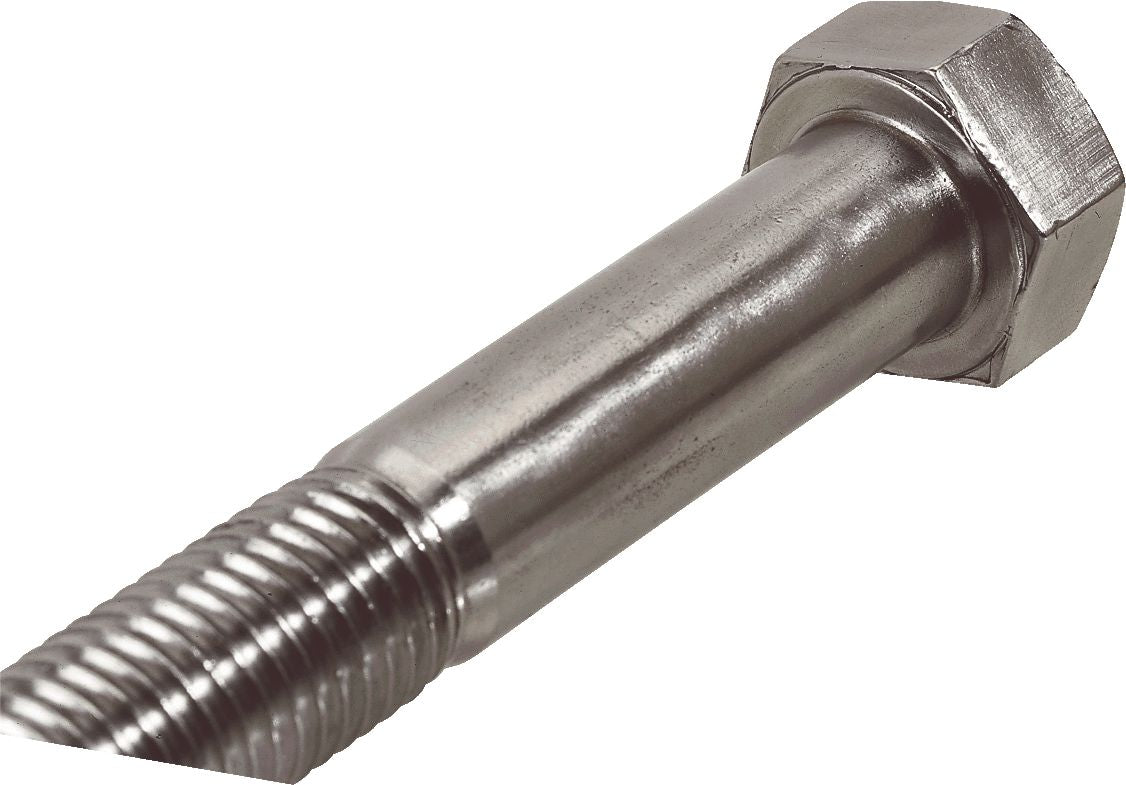

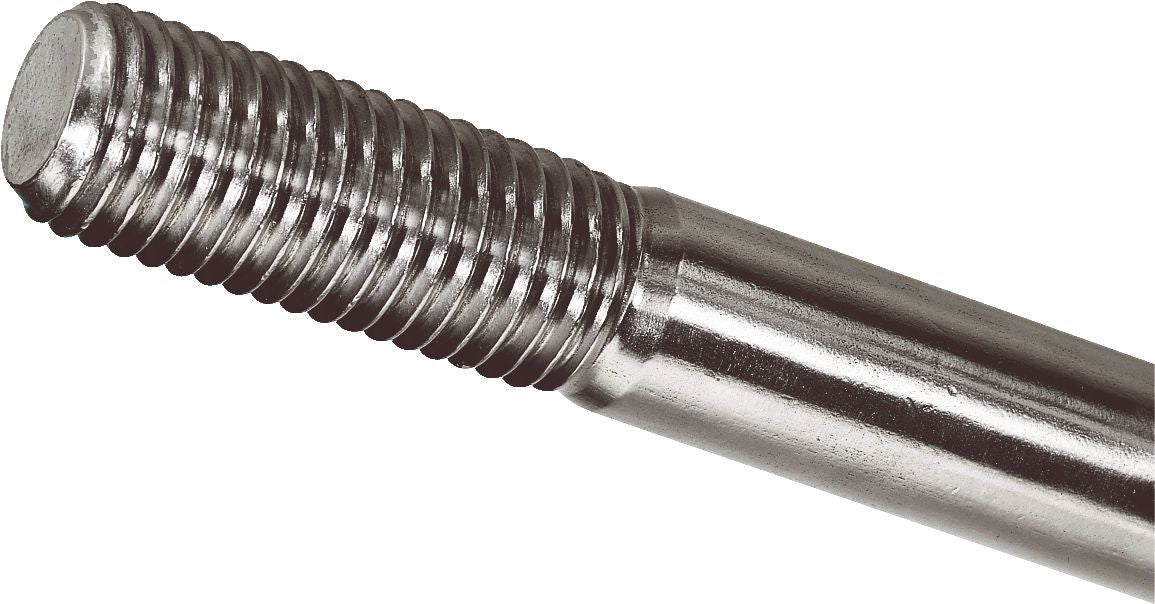

Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, Coarse Thread, 27/64" Head Height, 13/16" Across Flats, 9/16-12 x 2-1/2"
(Pack of
10)
The Alloy Steel Hex Cap Screw Grade 9 delivers unmatched reliability for your most critical fastening applications. This ultra-high-strength alloy steel fastener provides 20% greater strength than Grade 8 screws, with a minimum 180,000 PSI tensile strength that exceeds SAE, ASTM and Military standards. The fatigue-resistant UNJ thread design and heat-treated construction ensure dependable performance under extreme stress and vibration. Enhanced with Perma Plating for superior corrosion protection and featuring a 20% larger wrenching surface for safer installation, these Grade 9 screws provide the precision and durability demanded by aerospace, military, and high-performance industrial applications.
• 20% stronger than Grade 8
• Fatigue/vibration-resistant UNJ thread design
• 20% higher-than-normal wrenching surface for increased safety and even distribution of torque forces
• Heat-treated, quenched and tempered
• Perma Plated for superior corrosion protection
• Proprietary head marking for improved traceability
• Diameter marked on head for easy identification
• Matched strength nuts, flat washers and lock nuts available
• Minimum 180,000 PSI tensile strength
• Exceeds SAE, ASTM and Military Grade 8 strength requirements
• Designed for the most demanding maintenance requirements
• For use in critical applications
Minimum Threaded Length – Up to 6" Long: (2 x Diameter) + 1/4"; Over 6" Long: (2 x Diameter) + 1/2
Frequently Bought Together
Hex Cap Screw Grade 8 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/4-20 x 1"
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/2-13 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/4-20 x 1"
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/2-13 x 1-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Screwdriver Anti Slip Phillips No 2 X 4In
Couldn't load pickup availability
7" Straight Jaw Locking Pliers
Couldn't load pickup availability
10" Dual Jaw Adj and Pipe Wrench
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Product Description
The Alloy Steel Hex Cap Screw Grade 9 delivers unmatched reliability for your most critical fastening applications. This ultra-high-strength alloy steel fastener provides 20% greater strength than Grade 8 screws, with a minimum 180,000 PSI tensile strength that exceeds SAE, ASTM and Military standards. The fatigue-resistant UNJ thread design and heat-treated construction ensure dependable performance under extreme stress and vibration. Enhanced with Perma Plating for superior corrosion protection and featuring a 20% larger wrenching surface for safer installation, these Grade 9 screws provide the precision and durability demanded by aerospace, military, and high-performance industrial applications.• 20% stronger than Grade 8
• Fatigue/vibration-resistant UNJ thread design
• 20% higher-than-normal wrenching surface for increased safety and even distribution of torque forces
• Heat-treated, quenched and tempered
• Perma Plated for superior corrosion protection
• Proprietary head marking for improved traceability
• Diameter marked on head for easy identification
• Matched strength nuts, flat washers and lock nuts available
• Minimum 180,000 PSI tensile strength
• Exceeds SAE, ASTM and Military Grade 8 strength requirements
• Designed for the most demanding maintenance requirements
• For use in critical applications
Minimum Threaded Length – Up to 6" Long: (2 x Diameter) + 1/4"; Over 6" Long: (2 x Diameter) + 1/2
Technical Specifications
| Item#: | A683 |
|---|---|
| Style | Premium |
| Diameter | 9/16 " |
| Thread Pitch | 12 |
| Thread | Coarse |
| Length | 2-1/2 " |
| Type | Hex Cap Screw |
| Across Flats | 13/16 " |
| Material | Alloy Steel |
| Grade | 9 |
| Finish | Bright Zinc |
| Tensile Strength | 180,000 PSI |
| Head Style | High Hex |
| Head Height | 27/64 " |
| Thread Form | UNJ |
| Thread Length | Partial |
| Thread Length Minimum | 1-3/8 " |
| UNSPSC #: | 31161501 |
| TAA Compliant: | Yes |
| Weight: | 2.18 lb |
