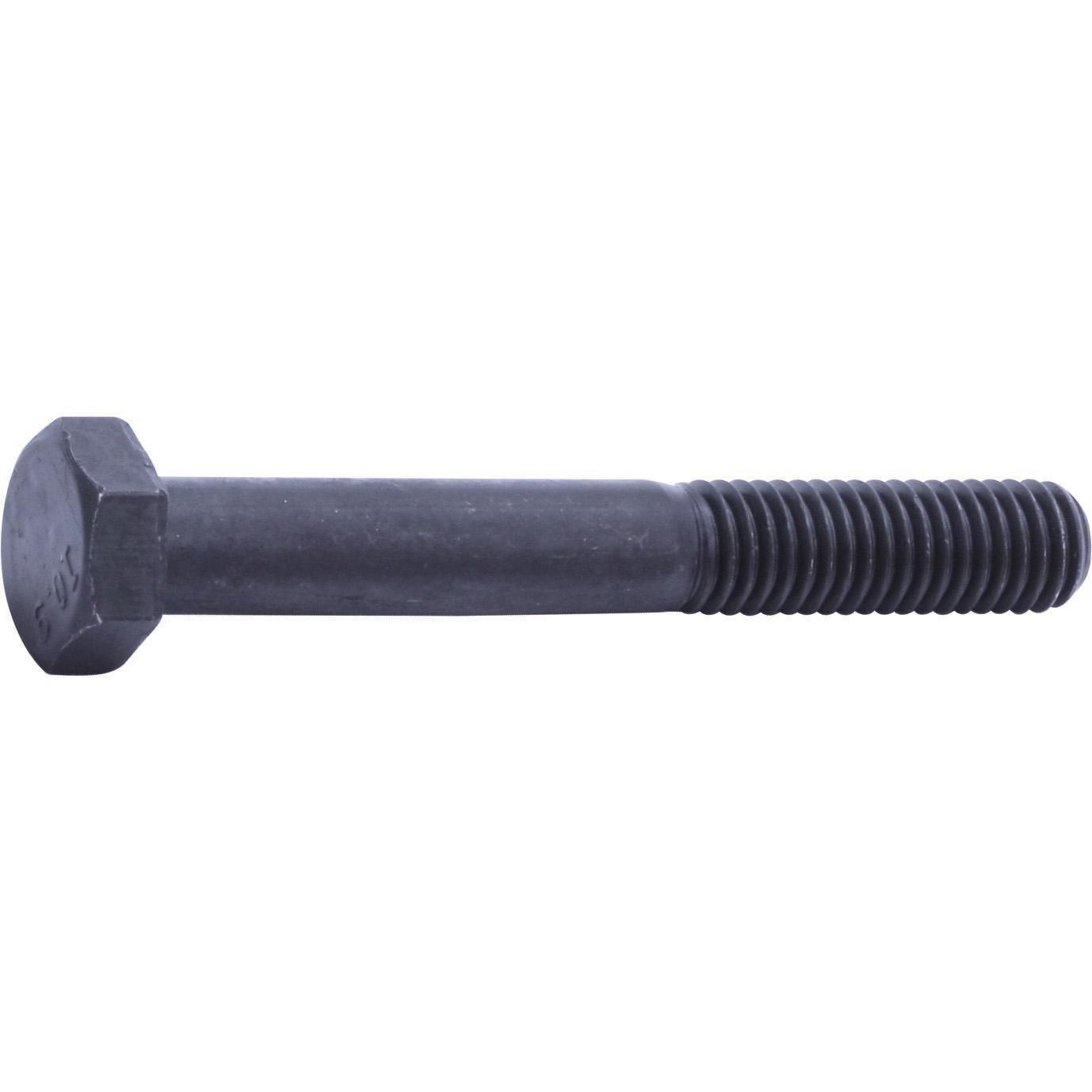

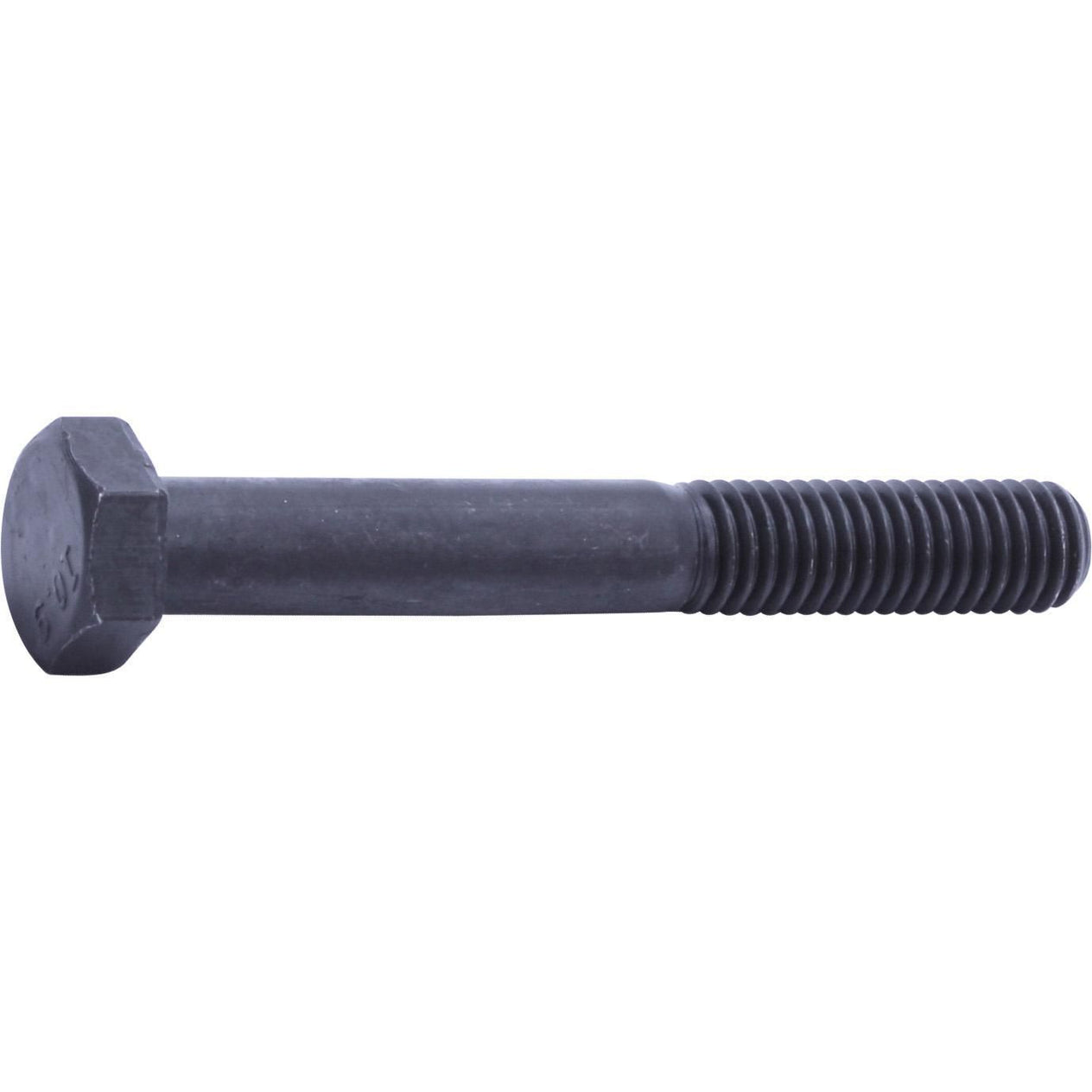

Hex Cap Screw Property Class 10.9 M30-3.5 x 170mm
(Pack of
1)
• 1,040 MPa (150,000 PSI) minimum ultimate tensile strength
• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
Frequently Bought Together
Hex Cap Screw 18-8 Stainless Steel 5/16-18 x 1"
Item#: 91025
Couldn't load pickup availability
Hex Cap Screw Property Class 10.9 M10-1.5 x 30mm
Item#: 4293
Couldn't load pickup availability
Hex Cap Screw Grade 8 5/8-11 x 3"
Item#: FA68102
Couldn't load pickup availability
Hex Cap Screw 18-8 Stainless Steel 5/16-18 x 1"
Item#: 91025
Couldn't load pickup availability
Hex Cap Screw Property Class 10.9 M10-1.5 x 30mm
Item#: 4293
Couldn't load pickup availability
Hex Cap Screw Grade 8 5/8-11 x 3"
Item#: FA68102
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/2-13
Item#: FA95681
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/16-18
Item#: FA68401
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 5/16"
Item#: FA502
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Item#: 84931
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Item#: A530
Couldn't load pickup availability
Rechargeable Penlight Flashlight
Item#: 1635596
Couldn't load pickup availability
Product Description
• 1,040 MPa (150,000 PSI) minimum ultimate tensile strength• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
Technical Specifications
| Item#: | 1435936 |
|---|---|
| Style | Industry Standard |
| Diameter | M30 |
| Thread Pitch | 3.5 mm |
| Thread | Coarse |
| Length | 170 mm |
| Type | Hex Cap Screw |
| Across Flats | 46 mm |
| Material | Alloy Steel |
| Grade | 10.9 |
| Finish | Plain |
| Tensile Strength | 1,040 MPa |
| Specifications | DIN 931 |
| Head Style | Hex |
| Head Height | 18.7 mm |
| Thread Length | Partial |
| Thread Length Minimum | 66 mm |
| UNSPSC #: | 31161501 |
| TAA Compliant: | Yes |
Product Restrictions
