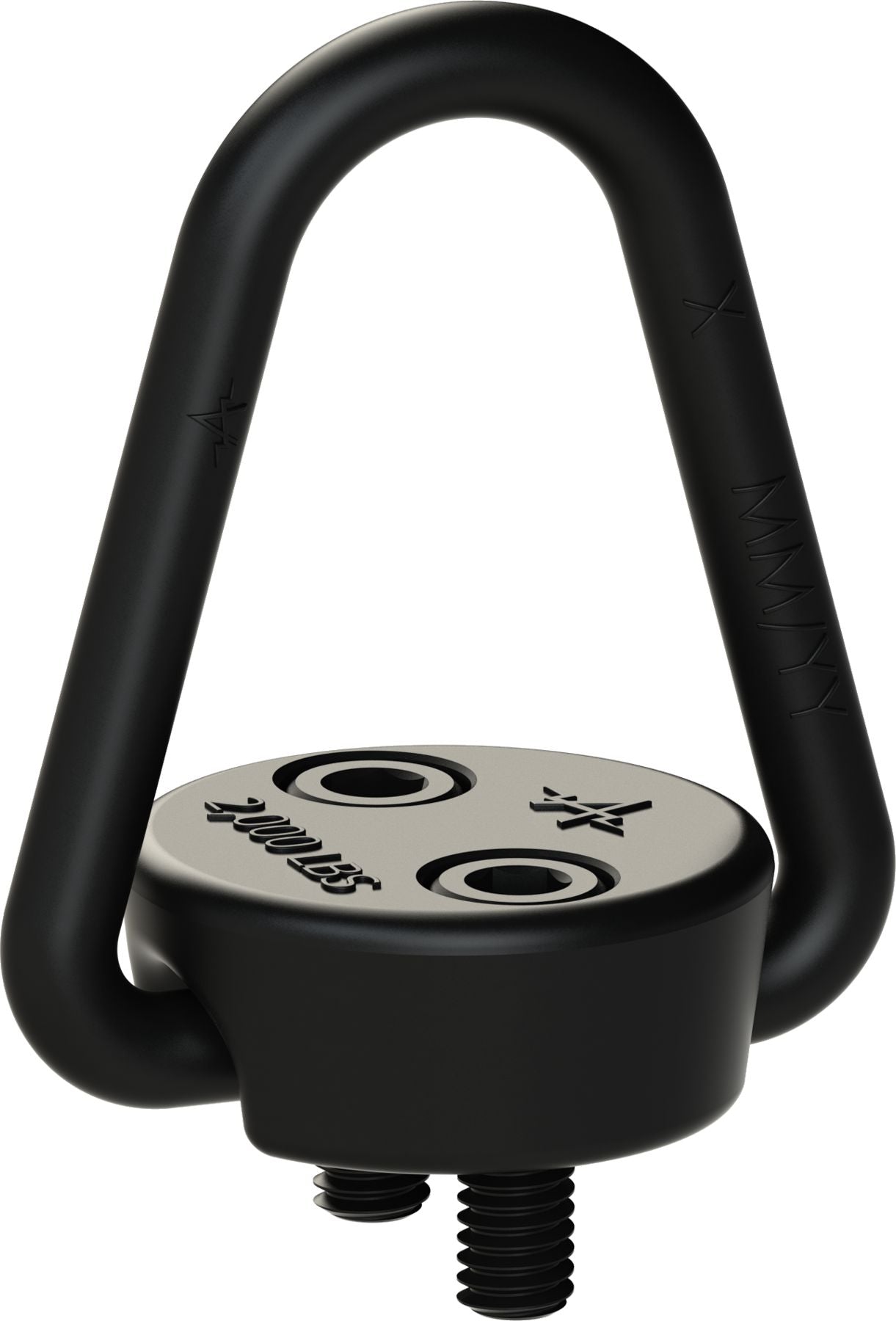

Home Hardware Hoist Ring, Flip-Flop, 5,000 lb Load Limit
Hardware

Hoist Ring, Flip-Flop, 5,000 lb Load Limit
(Pack of 1.0)

American Drill Bushing®

• Forged chrome moly steel
• Heat treated
• Black oxide finish
• Pivot 180° under load
• 6:1 design factor
• High strength screws are 100% Magnaflux inspected
• Rings and bodies are Magnafluxed per ASTM 1444
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
*Mounting screws included

Read More

Catalog page#: 15-17

Frequently Bought Together


Hook Ceiling Trade Size 4

Item#: 96198

Screw Pin Anchor Shackle, 5/8", 9,000 lb WLL

Item#: 1429887

Eye Bolts, Machinery, 1/2 x 1-1/2"

Item#: 85519

Hoist Ring, Heavy Duty®, 10,000 lb Load Limit

Item#: 58659

Hoist Ring, Heavy Duty®, 10,000 lb Load Limit

Item#: 1423193

Hoist Ring, Heavy Duty®, Metric, 1,500 kg Load Limit

Item#: 1423212

Screw Pin Anchor Shackle, 5/16", 1,500 lb WLL

Item#: 1424879

Screw Pin Anchor Shackle, 1/4", 1,500 lb WLL

Item#: 1429877

Tarp Strap Epdm Rubber with Hooks 14" Long

Item#: 99560

Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102

Rechargeable Penlight Flashlight

Item#: 1635596

Superbutt Connector 22 to 18 AWG Red

Item#: 94727

Product Description

• Forged chrome moly steel
• Heat treated
• Black oxide finish
• Pivot 180° under load
• 6:1 design factor
• High strength screws are 100% Magnaflux inspected
• Rings and bodies are Magnafluxed per ASTM 1444
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
*Mounting screws included

Technical Specifications

Item#: 1423414
Type Flip-Flop
Thread Size 1/2-13
Screw Length 2 "
Number of Screws 2
Material Chrome Molly Steel
Finish Black Oxide
Working Load Limit 5,000 lb
Swivel 0 °
Pivot 180 °
Recommended Installation Torque 20-25 ft·lbf

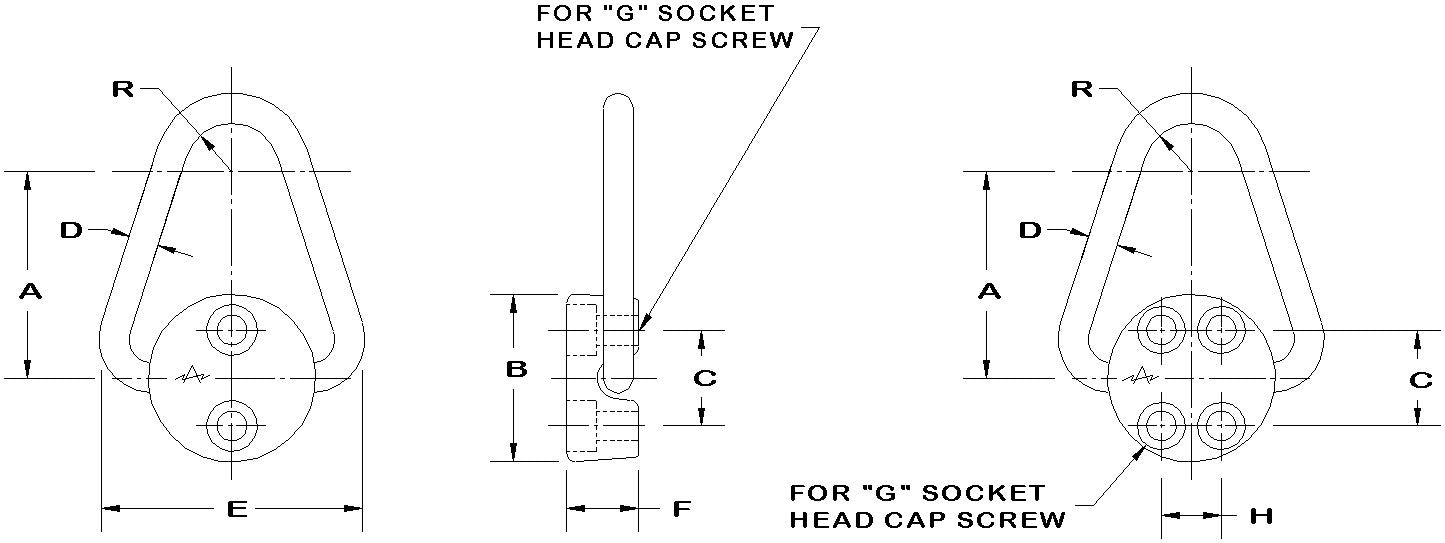

Dimension A 3 "
Dimension B 2-5/8 "
Dimension C 1-1/2 "
Dimension D 1/2 "
Dimension E 3-7/8 "
Dimension F 1-1/8 "
Dimension G 1/2 "
Dimension H 0 "
Dimension R 3/4 "
UNSPSC #: 24101602
TAA Compliant: Yes
