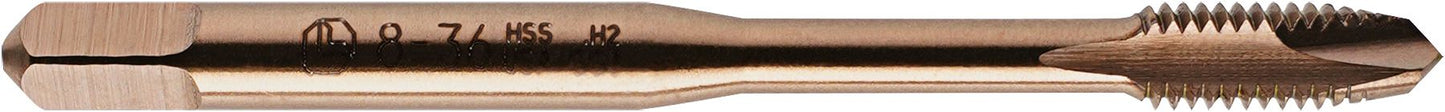

HSS Spiral Point Hand Tap 8-36
(Pack of
1.0)
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Jobber Length Drill Bit HSS 9/64"
Couldn't load pickup availability
Jobber Length Drill Bit Kit 29 Pcs
Couldn't load pickup availability
Jobber Length Drill Bit HSS 13/32"
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
HSS Spiral Point Hand Tap 1/4-20
Couldn't load pickup availability
HSS Spiral Point Hand Tap M3 x 0.5
Couldn't load pickup availability
Pilotdrive Cryotap #8-32 Starter Hand Tap
Couldn't load pickup availability
3/8"-18 NPT Pipe Tap, Drill Size 37/64", HSS
Couldn't load pickup availability
1/4-20" Bottoming Tap , 4-Flute, HSS
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap 10-32
Couldn't load pickup availability
Jobber Length Drill Bit HSS 5/32"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/8"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Maroon
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 61116 |
|---|---|
| Type | Machine Screw |
| Diameter | #8 |
| Pitch | 36 |
| Flutes | 2 |
| Thread Length | 3/8 " |
| H Limits | GH2 |
| Material | HSS |
| Recommended Drill Size | No. 29 |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.015 lb |
Product Restrictions
