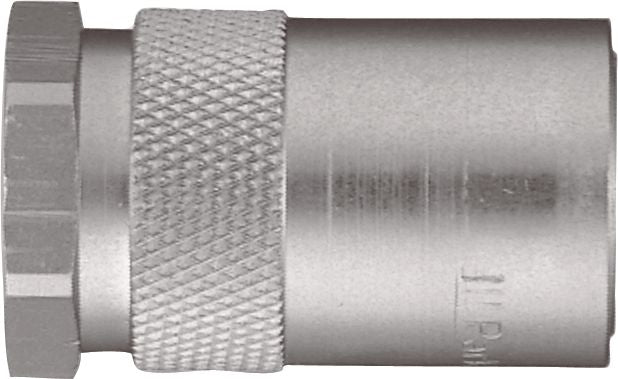

Hydraulic Quick Connect Coupler, Brass, Unvalved, 1/2" x 1/2-14, Female NPTF, 2.02" Length, 300PSI
(Pack of
2)
SKU:55830 Item#: 55830
These couplers and nipples are designed exclusively for coolant lines to molds and dies on injection molding machinery, and are engineered to significantly reduce downtime by providing fast, easy connection of coolant lines during mold changes.
• Couplers are non-valved and provide maximum flow for efficient cooling• Use in conjunction with Lawson’s Barb-Lok hose and pipe fittings for superior performance
• All sizes are pressure rated to 200 PSI
Dixon: CM-SeriesParker: Mold MateFoster: FJTHansen: Flo-Temp
Frequently Bought Together
Hydraulic Plug, 3/4-16"(08) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Crimp-On Hose Coupling 1/4" x 9/16-18
Couldn't load pickup availability
Hydraulic Cap Nut, 3/4-16"(08) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Hex Head Plug Brass 3/8-18 Male NPT
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/8" x 3/8-18
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 3/8" x 3/8-18
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 3/4" x 3/4-14
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Product Description
These couplers and nipples are designed exclusively for coolant lines to molds and dies on injection molding machinery, and are engineered to significantly reduce downtime by providing fast, easy connection of coolant lines during mold changes.• Couplers are non-valved and provide maximum flow for efficient cooling• Use in conjunction with Lawson’s Barb-Lok hose and pipe fittings for superior performance
• All sizes are pressure rated to 200 PSI
Dixon: CM-SeriesParker: Mold MateFoster: FJTHansen: Flo-Temp
Technical Specifications
| Item#: | 55830 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | Unvalved |
| Body Size | 1/2 " |
| Thread Size | 1/2-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 4,900 PSI |
| Seal Material | Silicone |
| Material | Brass |
| Locking Mechanism | 8 Balls |
| Flow | 15 gal/min |
| Length | 2.02 " |
| Temperature Range | -90 to 400 F |
| Working Pressure | 300 PSI |
| Hex Size | 1-1/8 " |
| Maximum Diameter | 1.24 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
| Weight: | 0.7275 lb |
