IDC Pigtail Connector, 22 to 14 AWG, 221°F Temperature Rating
(Pack of
25)
• A great new design of U-element (Scotchlok®) connectors

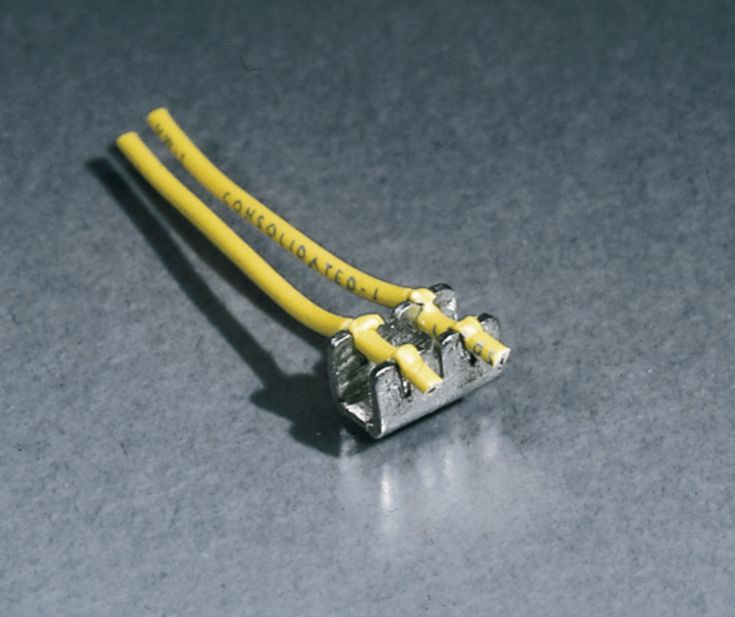

• The solid, tin-plated, copper U-element gives you a reliable, fast, self-stripping connection
• Makes two-way or three-way pigtail connections using 22–14 Ga. solid or stranded copper wire
• The moisture-resistant version is filled with a special sealant to guard against corrosion – use in damp locations such as vehicle undercarriages, marinas, exposed light and control wiring
• 600V
• Maximum temperature 221°F (105°C)
*Insulation Displacement Connector
Frequently Bought Together
ATO/ATC Fuse 10A Red
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Telcom IDC Discrete Connector 26 to 19 AWG
Couldn't load pickup availability
Telcom IDC Discrete Connector 26 to 22 AWG
Couldn't load pickup availability
IDC Pigtail Connector 22 to 14 AWG
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Male Quick Slide Terminal 16 to 14 AWG Clear
Couldn't load pickup availability
Ring Tongue Terminal 22 to 18 AWG Clear #10 Stud
Couldn't load pickup availability
Male Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• A great new design of U-element (Scotchlok®) connectors• The solid, tin-plated, copper U-element gives you a reliable, fast, self-stripping connection
• Makes two-way or three-way pigtail connections using 22–14 Ga. solid or stranded copper wire
• The moisture-resistant version is filled with a special sealant to guard against corrosion – use in damp locations such as vehicle undercarriages, marinas, exposed light and control wiring
• 600V
• Maximum temperature 221°F (105°C)
*Insulation Displacement Connector
Technical Specifications
| Item#: | 95350 |
|---|---|
| Style | IDC Pigtails |
| Wire Gauge | 22-14 AWG |
| Color | White |
| Voltage Rating | 600 V |
| Maximum Temperature Rating | 221 F |
| Connector Type | Pigtail |
| Description | White Top - For Dry Locations |
| Type | Electrical Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.18 lb |
Product Restrictions
