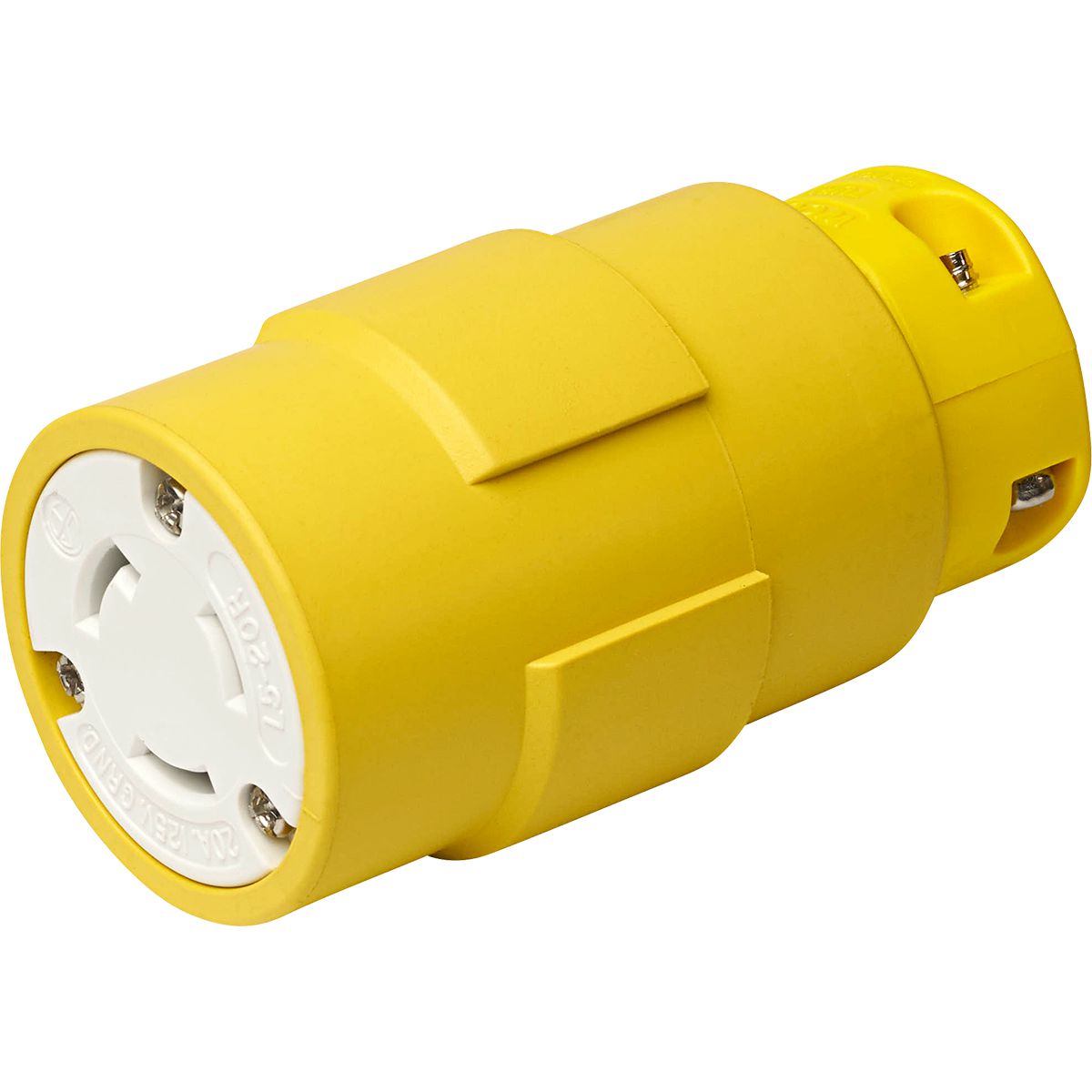

Industrial Duty Connector, 20 Amps, 125 Volts, 0.405 to 0.815" Cord Diameter, NEMA L5-20R
(Pack of
1)
SKU:87226 Item#: 87226
• Insulated Neotex® rubber cover resists heat, oils, water and chemicals, providing an extended service life.
• Designed to last longer in harsh industrial environments
• Transparent, tough polycarbonate back to allow visual inspection
• Connector line and ground contacts are formed from a single piece of phosphor bronze for maximum conductivity
• Captive assembly screws
• Floating blades self-align to differing receptacles to assure a good contact
• Extra-wide, neutral blade offers redundant protection against reverse polarity
• No. 10 ground screws
• Dust fin guards cord opening from dust entry
• Self-centering clamps eliminate stress on wiring terminals and accept cords from 18/3 SJO to 12/3 SO
• Impact-resistant nylon cord grip
Couldn't load pickup availability
Catalog page#: 17-90
Frequently Bought Together
Tru-Shrink Heat Shrink Tubing 8 to 1 AWG Black
Couldn't load pickup availability
Rechargeable Penlight Flashlight
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
Saf-T Connect Locking Plug
Couldn't load pickup availability
Quad Receptacle
Couldn't load pickup availability
Industrial Duty SAF-T Connect Plug 15A 125V
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Toggle Switch Faceplate
Couldn't load pickup availability
Universal Toggle Switch DPDT 20A 125V On-On
Couldn't load pickup availability
Thermoplastic Connector 15A 125V Yellow
Couldn't load pickup availability
Product Description
• Insulated Neotex® rubber cover resists heat, oils, water and chemicals, providing an extended service life.• Designed to last longer in harsh industrial environments
• Transparent, tough polycarbonate back to allow visual inspection
• Connector line and ground contacts are formed from a single piece of phosphor bronze for maximum conductivity
• Captive assembly screws
• Floating blades self-align to differing receptacles to assure a good contact
• Extra-wide, neutral blade offers redundant protection against reverse polarity
• No. 10 ground screws
• Dust fin guards cord opening from dust entry
• Self-centering clamps eliminate stress on wiring terminals and accept cords from 18/3 SJO to 12/3 SO
• Impact-resistant nylon cord grip
Technical Specifications
| Item#: | 87226 |
|---|---|
| Style | Industrial-Duty Plugs and Connectors |
| Volts | 125 |
| Description | Connector |
| NEMA Configuration | L5-20R |
| Cord Diameter | 0.405 - 0.815 " |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.53 lb |
