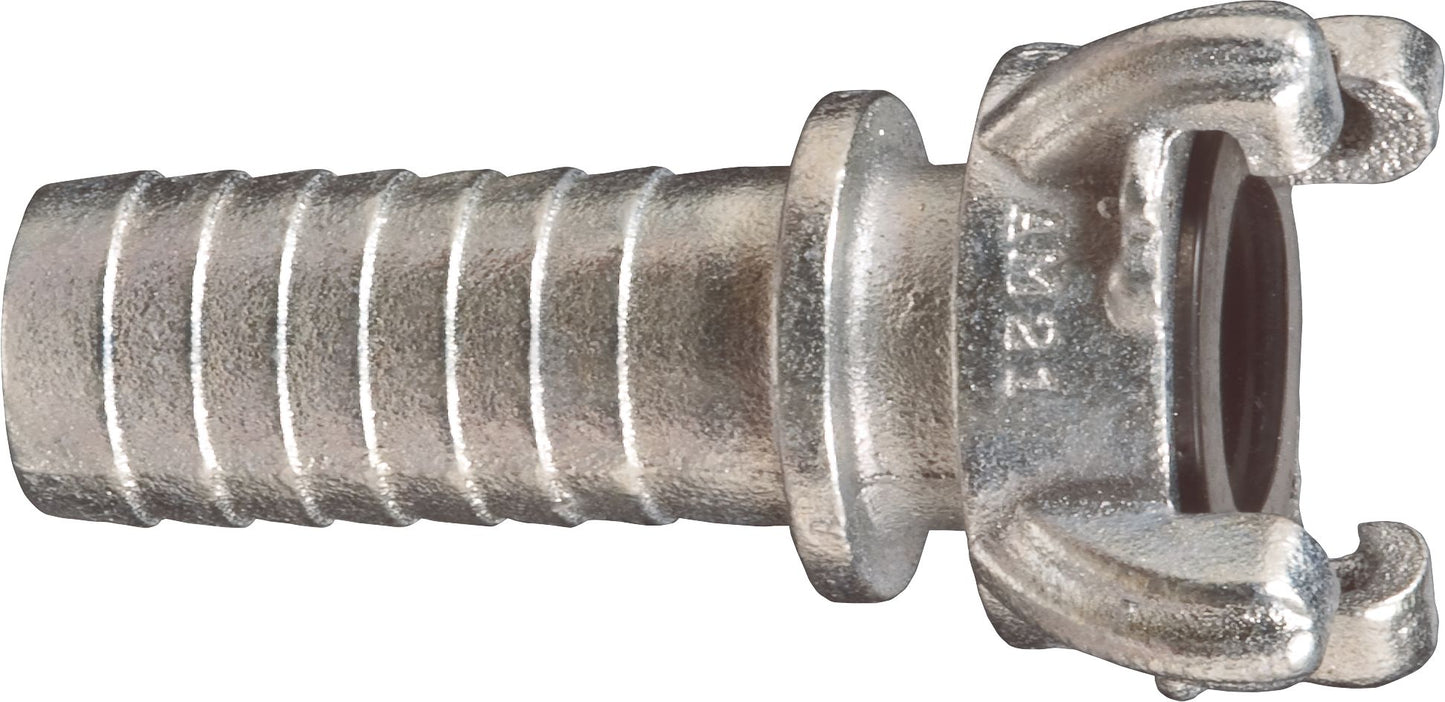

Quick Acting Claw Fitting Hose Barb, Iron, 1-1/2" (-24), Hose x Claw
(Pack of
1)
SKU:41211 Item#: 41211
Chicago-style, quick-acting, economical, universal coupling system. Used for connecting jackhammer and other high-volume hoses. Barb-style coupling permits easy field assembly and repair. Use of a safety clip or wire-type retainer is required for safety (clip provided).
• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection
• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific fitting recommendations on individual hose pages)
• Not permitted for use with steam service
• Operating pressure: 150 PSI
Frequently Bought Together
Replacement Washer for All Couplers
Couldn't load pickup availability
200-G-BU
Couldn't load pickup availability
Dynaswivel Air Line Connector 1/4-18 x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"
Couldn't load pickup availability
Pipe Coupling Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Pipe Coupling Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4 x 3/8"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Product Description
Chicago-style, quick-acting, economical, universal coupling system. Used for connecting jackhammer and other high-volume hoses. Barb-style coupling permits easy field assembly and repair. Use of a safety clip or wire-type retainer is required for safety (clip provided).• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection
• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific fitting recommendations on individual hose pages)
• Not permitted for use with steam service
• Operating pressure: 150 PSI
Technical Specifications
| Item#: | 41211 |
|---|---|
| Manufacturer Model #: | AM21 |
| Style | 4 Claw Style |
| Type | Hose Barb |
| Material | Iron |
| Connection Type A x B | Hose x Claw |
| Fitting Dimension A | 1-1/2 (-24) " |
| Maximum Pressure | 150 PSI |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 1.82 lb |
Product Restrictions
