Home Fasteners Multi-Grip Rivet 120° Countersunk Head 1/8"
Fasteners

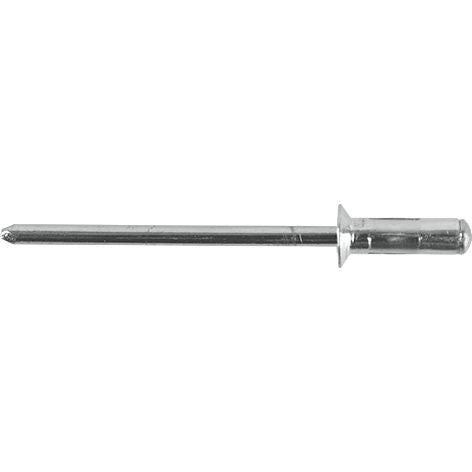

Multi-Grip Rivet, 120° Countersunk Head, Aluminum Body/Steel Mandrel, 1/8" Diameter, 0.093 to 0.25" Grip Range, 0.383" Body Length
(Pack of 100)

Item#: 1543584

Lawson Products

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Read More
Check Availability

Catalog page#: 7-12

Frequently Bought Together


SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539

Multi-Grip Rivet Large Flange Head Aluminum 3/16"

Item#: 1543594

Multi-Grip Rivet 120° Countersunk Head 3/16"

Item#: 1543587

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1543600

Open End Rivet Dome Head Aluminum 1/8"

Item#: 1950

Open End Rivet Dome Head Steel 1/4"

Item#: 85101

Open End Rivet Dome Head Steel 1/8"

Item#: 481

Butt Connector 22 to 18 AWG Red

Item#: 92822

Vision Pro Super

Item#: DY21061040

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152

Product Description

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Technical Specifications

Item#: 1543584
Type Multi-Grip
Head Style 120° Countersunk Head
Material Body / Mandrel Aluminum/Steel
Diameter 1/8 "
Grip Range 0.093 – 0.250 "
Hole Size 0.129 – 0.138 "
Head Diameter 0.209 "
Head Height 0.029 "
Body Length 0.383 "
Shear Strength 165 lb
Tensile Strength 230 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.2205 lb
