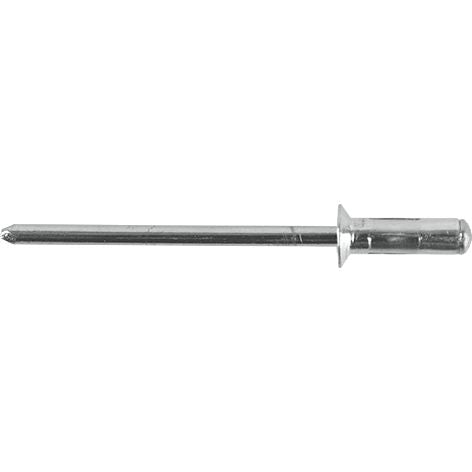

Multi-Grip Rivet, Large Flange Head, Aluminum Body/Steel Mandrel, 3/16" Diameter, 0.062 to 0.25" Grip Range, 0.406" Body Length
(Pack of
100)
SKU:1543592 Item#: 1543592
Large Flange
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Couldn't load pickup availability
Catalog page#: 7-12
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 1/4"
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Product Description
Large Flange• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Technical Specifications
| Item#: | 1543592 |
|---|---|
| Type | Multi-Grip |
| Head Style | Large Flange |
| Material Body / Mandrel | Aluminum/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.062 – 0.250 " |
| Hole Size | 0.192 – 0.200 " |
| Head Diameter | 0.625 " |
| Head Height | 0.069 " |
| Body Length | 0.406 " |
| Shear Strength | 350 lb |
| Tensile Strength | 530 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.72 lb |
