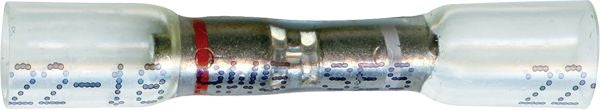

Multi-Wire Butt Connector, 20 to 18 AWG, Clear Tube with Red Dashes, Crimp Die, Red 1-Wire at One End, Blue 2-Wire at Other End
(Pack of
20)
SKU:16537 Item#: 16537
The dual protection of heat shrink tubing, pre-shrunk around a nylon-insulated terminal, is an excellent product for harsh, over-the-road and off-road heavy equipment applications.
• Lined with extra adhesive to flow around multiple wires
• Tensile strength: 2,200 PSI
• Elongation: 600%
• Rated at 600V
Couldn't load pickup availability
Catalog page#: 17-17
Frequently Bought Together
Butt Connector 12 to 10 AWG
Couldn't load pickup availability
Multi-Wire Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector Jar 22-18 AWG
Couldn't load pickup availability
ATO/ATC Fuse 20A Yellow
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Step-Down Butt Connector 16 to 14/22 to 18 AWG
Couldn't load pickup availability
Product Description
The dual protection of heat shrink tubing, pre-shrunk around a nylon-insulated terminal, is an excellent product for harsh, over-the-road and off-road heavy equipment applications.• Lined with extra adhesive to flow around multiple wires
• Tensile strength: 2,200 PSI
• Elongation: 600%
• Rated at 600V
Technical Specifications
| Item#: | 16537 |
|---|---|
| Type | Crimp and Heat Shrink |
| Wire Gauge | 20-18 AWG |
| Color | Clear/Red/Blue |
| Crimp Die Size | 20-18 / 16-14 AWG |
| Style | Heat Seal Multi-Wire Butt Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.09 lb |
