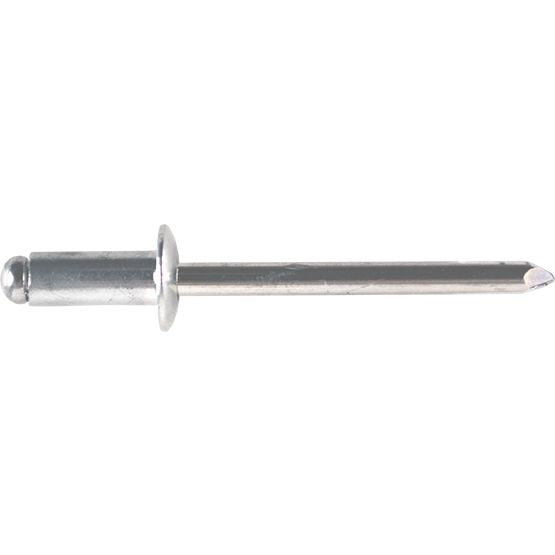

Open End Rivet, Dome Head, Aluminum, 1/4" Diameter, 0.626 to 0.75" Grip Range, 1" Body Length
(Pack of
100)
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Frequently Bought Together
Hex Nut Grade 8 Alloy Steel 5/8-11
Item#: A106
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Item#: 88439
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 1/2-13
Item#: 80931
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/16"
Item#: 486
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/32"
Item#: 97082
Couldn't load pickup availability
Open End Rivet Dome Head Steel 5/32"
Item#: 82329
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Item#: 90478
Couldn't load pickup availability
Open End Rivet Dome Head Steel 1/8"
Item#: 480
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/16"
Item#: 487
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Item#: 94728
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Item#: FA95679
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Item#: 53983
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

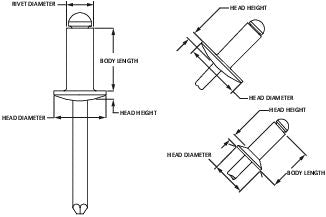

Technical Specifications
| Item#: | 85106 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 1/4 " |
| Grip Range | 0.626 – 0.750 " |
| Industry Number | 812 |
| Hole Size | 0.257 – 0.261 " |
| Drill Size | F |
| Head Diameter | 0.500 " |
| Head Height | 0.080 " |
| Body Length | 1.000 " |
| Shear Strength | 460 lb |
| Tensile Strength | 560 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.91 lb |
