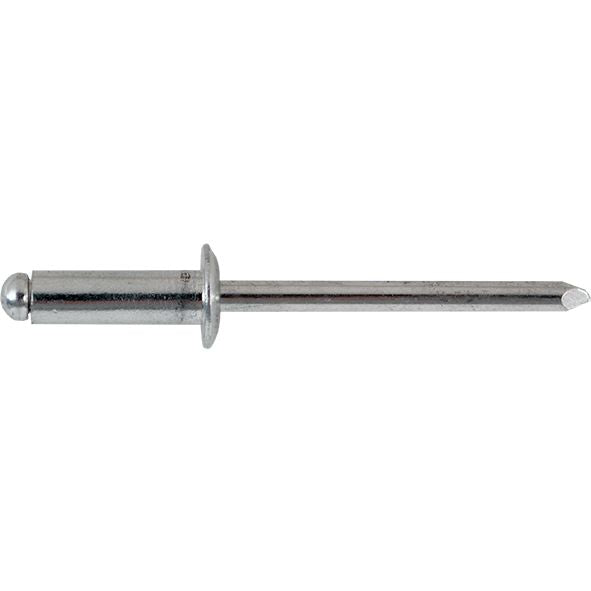

Open End Rivet Dome Head Aluminum 3/16"
(Pack of
100)
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 1/4"
Item#: 88435
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Item#: A102
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Item#: A104
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Item#: 1950
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Item#: 1966
Couldn't load pickup availability
Open End Rivet Dome Head Steel 1/4"
Item#: 85101
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Item#: 483
Couldn't load pickup availability
Open End Rivet 120° Countersunk Head Steel 1/8"
Item#: 488
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 1/8"
Item#: 1973
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Item#: 88447
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Item#: 94609
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Item#: 88446
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 489 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 3/16 " |
| Grip Range | 0.251 – 0.375 " |
| Industry Number | 66 |
| Hole Size | 0.192 – 0.196 " |
| Drill Size | #11 |
| Head Diameter | 0.375 " |
| Head Height | 0.060 " |
| Body Length | 0.575 " |
| Shear Strength | 260 lb |
| Tensile Strength | 320 lb |
| Kent Complete 2 Location | Drawer N : Row 3 : Column 2 |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.32 lb |
Product Restrictions
