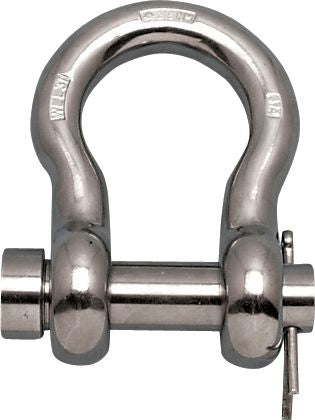

Oversize Round Pin Anchor Shackle, Stainless Steel, 3/8", 1,500 lb WLL
(Pack of
2.0)
Round pin shackles afford easy removal of the pin which is secured by a cotter pin. Perform well where the pin is subjected to a torque or twisting action. Unsatisfactory in applications where the pin is subjected to an axial load.
• 316 Stainless Steel
• Meets Federal Specification RR-C-271F, Type IVA, Class 1
CAUTION: Do not exceed working load limits.
Frequently Bought Together
Turnbuckle, Eye and Eye, Galvanized, 3/8" x 6"
Item#: 1442193
Couldn't load pickup availability
Shoulder Eye Bolt with Nut, Stainless Steel, 3/8", 1,000 lb WLL
Item#: 1427932
Couldn't load pickup availability
Eye Bolt with Nut 1/4" x 4" Long
Item#: 14467
Couldn't load pickup availability
36" Blue Stretch Master Nylon Slotted Strap
Item#: DY06670306
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 28" Long
Item#: 99563
Couldn't load pickup availability
Tuff-Edge® Web Sling, Polyester, Silver, 6' Length
Item#: 1412718
Couldn't load pickup availability
Bolt, Nut and Cotter Long Reach Shackle, 5/8", 7,000 lb WLL
Item#: 1429938
Couldn't load pickup availability
Round Pin Anchor Shackle, 3/8", 3,000 lb WLL
Item#: 1429901
Couldn't load pickup availability
Bolt, Nut and Cotter Anchor Shackle, 1/4", 1,500 lb WLL
Item#: 1429914
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Item#: A104
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Item#: FA88446
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Item#: 88436
Couldn't load pickup availability
Product Description
Round pin shackles afford easy removal of the pin which is secured by a cotter pin. Perform well where the pin is subjected to a torque or twisting action. Unsatisfactory in applications where the pin is subjected to an axial load.• 316 Stainless Steel
• Meets Federal Specification RR-C-271F, Type IVA, Class 1
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1427354 |
|---|---|
| Type | Anchor Shackle |
| Style | Round Pin |
| Body Material | 316-NM Stainless Steel |
| Size | 3/8 " |
| Working Load Limit | 1,500 lb |
| Pin Diameter | 7/16 " |
| Pin Material | 316-NM Stainless Steel |
| Width Between Eyes | 21/32 " |
| Bow Width | 15/16 " |
| Depth | 1-7/16 " |
| UNSPSC #: | 31301408 |
| TAA Compliant: | No |
