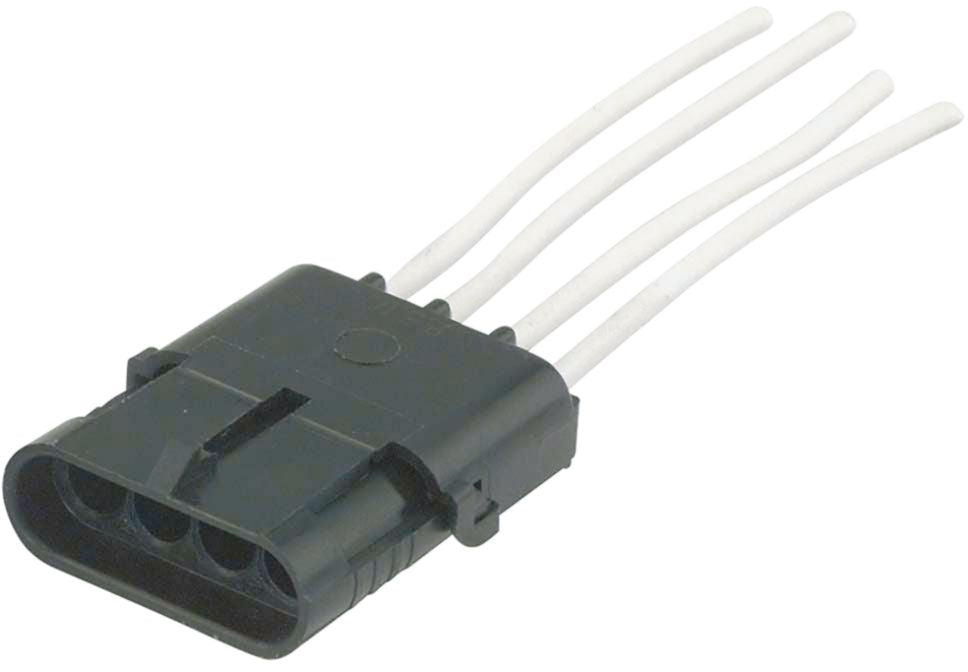

Pigtail Assembly, Female, 14 AWG, Shroud Connection, 20 Amps, 12 Volts, 4 Wire, 10" Length
(Pack of
5)
SKU:27801 Item#: 27801
• GM Weather Pack Series
• Complete terminal/pigtail assemblies include 10" long 14 Ga. wires, with male (tower) and female (shroud) housings
• For 12V systems – 20A maximum
• An environmentally-sealed electrical connection system, utilizing a pin-and-socket configuration, designed to withstand exposure to extreme temperatures, moisture, harsh engine compartment vapors and chemicals with outstanding reliability
• Great for vehicle under-the-hood waterproof electrical connections and repairs
Couldn't load pickup availability
Frequently Bought Together
Cable Tie 7.31" Black
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Clear
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 2/0 AWG Black 3/8"
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 2 AWG Brown 5/16"
Couldn't load pickup availability
DT Series Receptacle 13A 4 Contacts
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
DT Series Receptacle 13A 6 Contacts
Couldn't load pickup availability
Connector Housing 20A 3-Wire Shroud
Couldn't load pickup availability
Sealing Plug 16-12 AWG 13A Contact Size 16/12
Couldn't load pickup availability
Product Description
• GM Weather Pack Series• Complete terminal/pigtail assemblies include 10" long 14 Ga. wires, with male (tower) and female (shroud) housings
• For 12V systems – 20A maximum
• An environmentally-sealed electrical connection system, utilizing a pin-and-socket configuration, designed to withstand exposure to extreme temperatures, moisture, harsh engine compartment vapors and chemicals with outstanding reliability
• Great for vehicle under-the-hood waterproof electrical connections and repairs
Technical Specifications
| Item#: | 27801 |
|---|---|
| Style | Pigtail Assemblies |
| Type | Weather Pack |
| Wire Gauge | 14 AWG |
| Size | 4WIRE,FEMALE |
| Connection Type | Shroud |
| Number of Wires | 4 |
| Length | 10 " |
| Volts | 12 V |
| Description | 4 Wire |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.55 lb |
Product Restrictions
