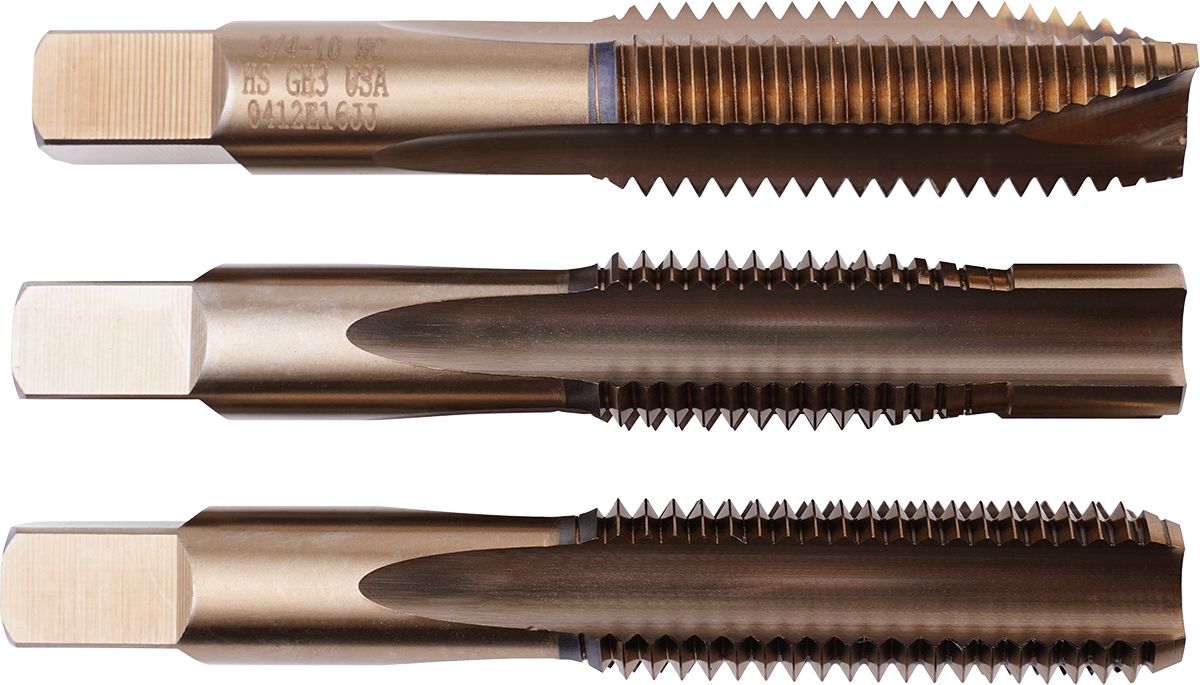

Pilotdrive Cryotap 3/4"-10 Tri-Pak, Pilotdrive, Plug, Bottoming Hand Taps
(Pack of
1)
SKU:DY80694503 Item#: DY80694503
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed
• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Treatment: Cryophase™ thermal cycle process
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
3/8" Fractional Drill Bit, Jobber Length, W/Flats
Couldn't load pickup availability
Jobber Length Drill Bit HSS 7/16"
Couldn't load pickup availability
Scotch-Brite Roloc Bristle Disc 2"
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap M5 x 0.8
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M5 x 0.8
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 10-32
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 5/8-11
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 7/16-14
Couldn't load pickup availability
T-Handle Hand Tap Wrench 1/16 to 1/4"
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
10Pc SAE Mini Combination Wrench Set
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 3" Brown
Couldn't load pickup availability
Product Description
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Treatment: Cryophase™ thermal cycle process
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80694503 |
|---|---|
| Type | Fractional |
| Style | Set |
| Material | High Speed Steel |
| Diameter | 3/4 " |
| Pitch | 10 |
| Flutes | 4 |
| Thread Length | 4-1/4 " |
| H Limits | 4 |
| Recommended Drill Size | 21/32 " |
| Description | One each of Pilotdrive, Plug, and Bottoming Style Taps |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 1.005 lb |
