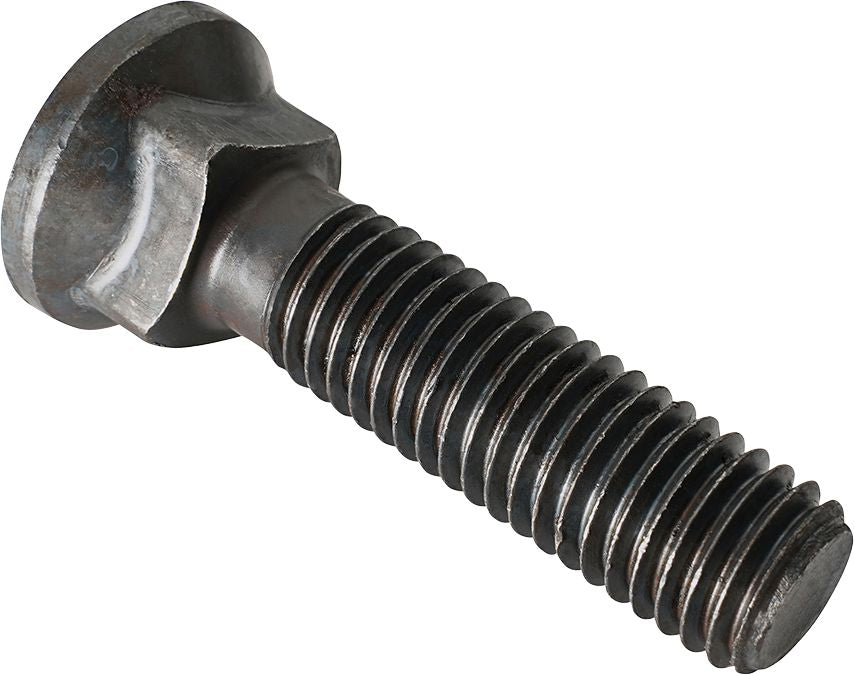

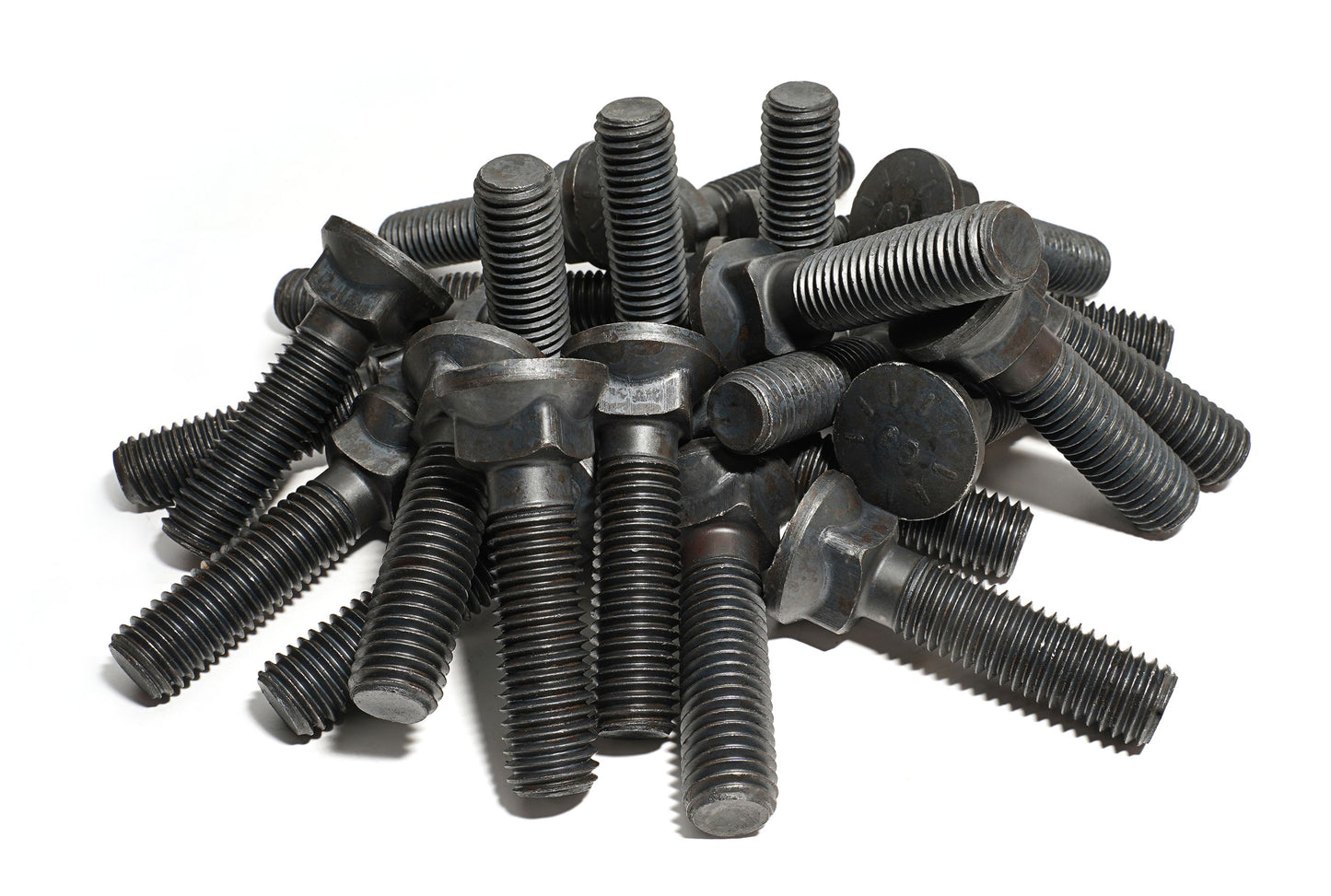

Plow Bolt, Oversized Dome Head, A9 (Grade 9), Alloy Steel, Plain Finish, Coarse Thread, 5/8-11 x 2-3/4"
(Pack of
25)
• 170,000 PSI minimum tensile strength
• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 1/2-13 x 3"
Item#: 668
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 5/8-11 x 3"
Item#: 702
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/4-20
Item#: FA68400
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Item#: FA88439
Couldn't load pickup availability
Plow Bolt High Strength A9 1-8 x 5"
Item#: 10735
Couldn't load pickup availability
Plow Bolt Grade 8 5/8-11 x 6"
Item#: 1158901
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Item#: A101
Couldn't load pickup availability
Product Description
• 170,000 PSI minimum tensile strength• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Technical Specifications
| Item#: | 10699 |
|---|---|
| Type | Plow Bolt |
| Diameter | 5/8 " |
| Thread Pitch | 11 |
| Thread | Coarse |
| Length | 2-3/4 " |

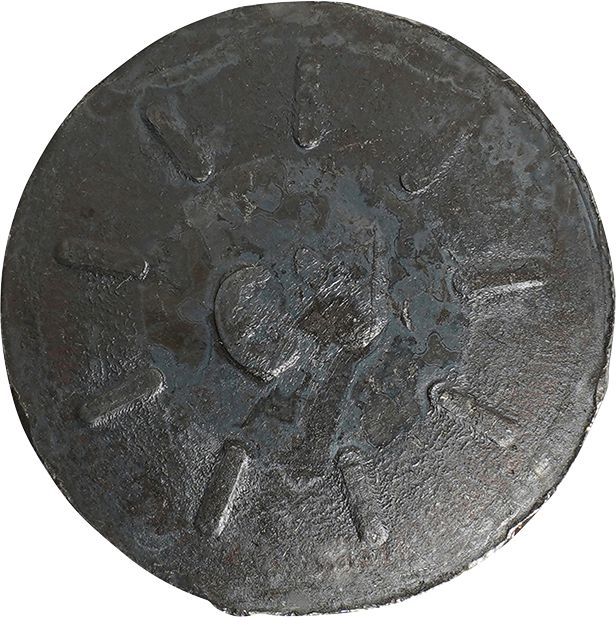

| Head Style | Oversized Dome |
| Finish | Plain |
| Material | Alloy Steel |
| Grade | 9 |
| Tensile Strength | 170,000 PSI |
| Size | 2-3/4 |
| UNSPSC #: | 31161600 |
| TAA Compliant: | Yes |
| Weight: | 7.29 lb |
