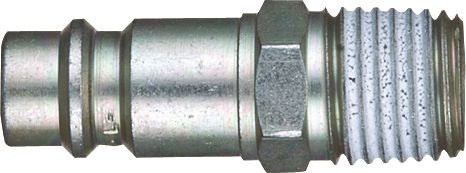

Push-Button Coupler Plug, Steel, High Flow, 175PSI Maximum Working Pressure, Male NPTF, 1/4" Body Size, 3/8-18 Thread Size
(Pack of
1)
SKU:KT15130 Item#: KT15130
• Specially engineered to allow almost twice the air flow of comparably sized couplers
• Do not qualify as safety couplers
• Body color: Blue with green button – outside plastic covering indicates if it is a regular coupler (blue or gray) or a safety coupler (black)
• Simple – just push button to release
• Button is recessed to prevent accidental disconnect
• Extremely durable – constructed of steel components encased in a high-impact, non-marring body
• Manufactured to demanding ANSI and ISO standards
• Temperature range: 5°F to 160°F (–15°C to +71°C)
• Maximum working pressure: 175 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Frequently Bought Together
Coupler, Schrader, 1/4'' Body, 1/4-18 Female NPT, Aluminum
Couldn't load pickup availability
Universal Safety Coupler Aluminum 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 3/8-18
Couldn't load pickup availability
Hose Barb Brass 5/16" x 3/8-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Hose Clamp 304 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Hose Mender Brass 3/16 x 3/16"
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Product Description
• Specially engineered to allow almost twice the air flow of comparably sized couplers• Do not qualify as safety couplers
• Body color: Blue with green button – outside plastic covering indicates if it is a regular coupler (blue or gray) or a safety coupler (black)
• Simple – just push button to release
• Button is recessed to prevent accidental disconnect
• Extremely durable – constructed of steel components encased in a high-impact, non-marring body
• Manufactured to demanding ANSI and ISO standards
• Temperature range: 5°F to 160°F (–15°C to +71°C)
• Maximum working pressure: 175 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Technical Specifications
| Item#: | KT15130 |
|---|---|
| Description | Push-Button Coupler |
| Type | Nipple |
| Style | High Flow |
| Body Size | 1/4 " |
| Thread Style | Male NPTF |
| Thread Size | 3/8-18 |
| Material | Steel |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
