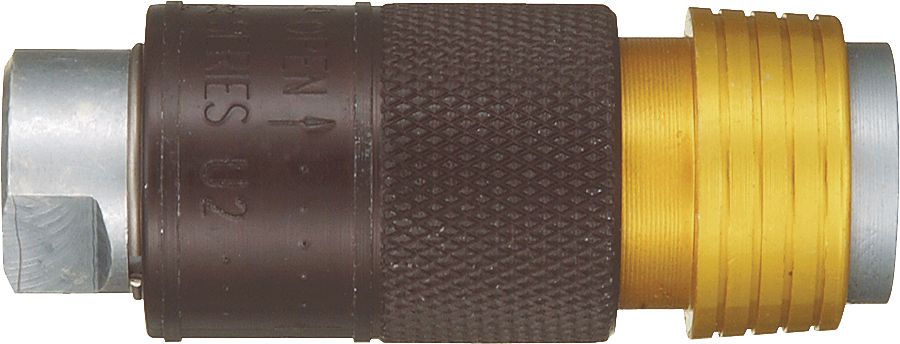

Universal Safety Air Coupler, Aluminum, 200PSI, Female NSPF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
Minimize the chance of hose whip. Safety venting allows coupling and uncoupling at zero pressure, reducing the tendency of hose whip. Coupler accepts Industrial Interchange, Tru-Flate, and ARO 210 Series plugs. Use only for applications where a light-duty coupler is called for, such as assembly lines, paint shops and wall manifolds. Operation is simple, just follow the direction of the “On/Off” arrow stamped on the black valve sleeve.
• Lightweight aluminum construction
• Corrosion-resistant hard coat anodized finish and airtight nitrile seals
• Knurled sleeve for gripping
• Maximum operating pressure: 200 PSIG
• Temperature range: –20°F to +200°F (–29°C to +93°C)
To operate air sleeve valve:1. Connect plug to coupler until coupler sleeve is engaged.2. Push and turn air sleeve valve towards coupler sleeve to turn on air flow.
Coupler size is important, since a coupler that is too small can act as a restriction in the air line, reducing both the pressure and volume of air reaching the end of the hose. It is generally recommended that the body size of the coupler be matched to the I.D. of the hose being used. Thus 1/4" I.D. hose should be fitted with 1/4" I.D. couplings. Generally speaking, 3/16" I.D. hose should be fitted with 1/4" couplings, while 5/16" I.D. hose may be fitted with either 1/4" or 3/8" couplings, depending on the volume and pressure required at the end of the hose. 1/2" I.D. hose should be fitted with 1/2" couplings.
Frequently Bought Together
Quick Disconnect Coupler Steel 3/8" x 3/8-18
Couldn't load pickup availability
Nipple, Industrial, 1/4'' Body, 1/8-27 Male NPTF, Steel
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 5/8" x 1/2-14
Couldn't load pickup availability
Nipple, Schrader, 1/4'' Body, 1/4-18 Male NPT, Steel
Couldn't load pickup availability
Garden Hose End Brass 3/4" x 3/4-11-1/2
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 5/8" x 1/2-14
Couldn't load pickup availability
Nipple, Schrader, 1/4'' Body, 1/4-18 Male NPT, Steel
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
Minimize the chance of hose whip. Safety venting allows coupling and uncoupling at zero pressure, reducing the tendency of hose whip. Coupler accepts Industrial Interchange, Tru-Flate, and ARO 210 Series plugs. Use only for applications where a light-duty coupler is called for, such as assembly lines, paint shops and wall manifolds. Operation is simple, just follow the direction of the “On/Off” arrow stamped on the black valve sleeve.• Lightweight aluminum construction
• Corrosion-resistant hard coat anodized finish and airtight nitrile seals
• Knurled sleeve for gripping
• Maximum operating pressure: 200 PSIG
• Temperature range: –20°F to +200°F (–29°C to +93°C)
To operate air sleeve valve:1. Connect plug to coupler until coupler sleeve is engaged.2. Push and turn air sleeve valve towards coupler sleeve to turn on air flow.
Coupler size is important, since a coupler that is too small can act as a restriction in the air line, reducing both the pressure and volume of air reaching the end of the hose. It is generally recommended that the body size of the coupler be matched to the I.D. of the hose being used. Thus 1/4" I.D. hose should be fitted with 1/4" I.D. couplings. Generally speaking, 3/16" I.D. hose should be fitted with 1/4" couplings, while 5/16" I.D. hose may be fitted with either 1/4" or 3/8" couplings, depending on the volume and pressure required at the end of the hose. 1/2" I.D. hose should be fitted with 1/2" couplings.
Technical Specifications
| Item#: | 27809 |
|---|---|
| Description | Safety Coupler |
| Type | Coupler |
| Style | Universal |
| Body Size | 1/4 " |
| Thread Style | Female NSPF |
| Thread Size | 1/4-18 |
| Working Pressure | 200 PSI |
| Material | Aluminum |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
| Weight: | 0.28 lb |
