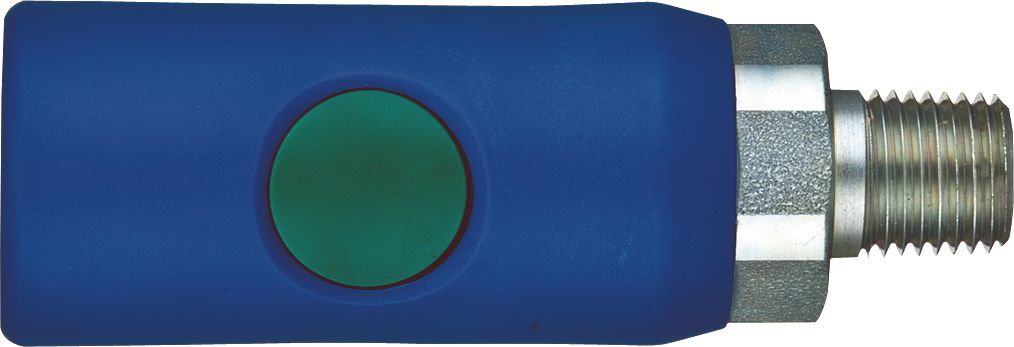

Push-Button Coupler, Steel with Plastic Cover, High Flow, Male NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
SKU:KT15125 Item#: KT15125
• Specially engineered to allow almost twice the air flow of comparably sized couplers
• Do not qualify as safety couplers
• Body color: Blue with green button – outside plastic covering indicates if it is a regular coupler (blue or gray) or a safety coupler (black)
• Simple – just push button to release
• Button is recessed to prevent accidental disconnect
• Extremely durable – constructed of steel components encased in a high-impact, non-marring body
• Manufactured to demanding ANSI and ISO standards
• Temperature range: 5°F to 160°F (–15°C to +71°C)
• Maximum working pressure: 175 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Frequently Bought Together
Universal Air Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose End Brass 3/8" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Hose Mender Brass 3/4 x 3/4"
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/16"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Couldn't load pickup availability
Hose End Brass 3/8" x 1/4-18
Couldn't load pickup availability
Barb-Lok Hose End 3/8" (-6) x 1/4-18 (-4)
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Product Description
• Specially engineered to allow almost twice the air flow of comparably sized couplers• Do not qualify as safety couplers
• Body color: Blue with green button – outside plastic covering indicates if it is a regular coupler (blue or gray) or a safety coupler (black)
• Simple – just push button to release
• Button is recessed to prevent accidental disconnect
• Extremely durable – constructed of steel components encased in a high-impact, non-marring body
• Manufactured to demanding ANSI and ISO standards
• Temperature range: 5°F to 160°F (–15°C to +71°C)
• Maximum working pressure: 175 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Technical Specifications
| Item#: | KT15125 |
|---|---|
| Description | Push-Button Coupler |
| Type | Coupler |
| Style | High Flow |
| Body Size | 1/4 " |
| Thread Style | Male NPTF |
| Thread Size | 1/4-18 |
| Material | Steel with Plastic Cover |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.24 lb |
