Push-to-Connect Connector, Nickel-Plated Brass, 1/4 x 1/8", Tube x Male NPT, 7 to 290 PSI
(Pack of
5)
SKU:28275P Item#: 28275P
The nickel-plated brass push-to-connect fittings are suitable for compressed air (lubricated or non-lubricated). The fitting is designed to perform in particularly harsh (e.g. weld-splatter) or abusive (e.g. steel-toed boot) environments. Compatible with polyurethane and nylon tubing. Metal tubing may be used with specific preparation. For applications where the fitting is exposed to aggressive environments. Legris uses high phosphorous electroless nickel-plating for the nickel-plated brass push-to-connect fitting range. The electroless nickel-plating has a dull, flat finish. It adheres to more of the surface, such as in the root of the threads and grooves of the collet. It has increased resistance to water, harsh detergents and other aggressive fluids and environments. As a result, the nickel-plated brass push-to-connect series offers superior chemical, corrosion and abrasion resistance. The nickel-plated brass push-to-connect series utilizes a metal release button more appropriate for harsh and abusive environments.
• All items in the nickel-plated brass push-to-connect range are silicone free
• Working temperature: 5°F to 180°F
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• FDA chemical nickel-plated brass
• Construction:
– Body: Electroless nickel-plated brass
– Backup washer: Electroless nickel-plated brass
– Collet technology: Electroless nickel-plated brass
– O-ring: Nitrile
– Base: Electroless nickel-plated brass with thread sealant on tapered components
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Frequently Bought Together
Hex Bushing Malleable Iron 1-11-1/2 x 3/4-14
Couldn't load pickup availability
Push-to-Connect Elbow, PBT Resin, 1/4 x 1/4"
Couldn't load pickup availability
Merchant Coupling Steel 3/8-18 x 3/8-18
Couldn't load pickup availability
Super 77 Hose Clamp SS 1/2 to 1-1/8"
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Super 77 Hose Clamp SS 5/8 to 1-1/4"
Couldn't load pickup availability

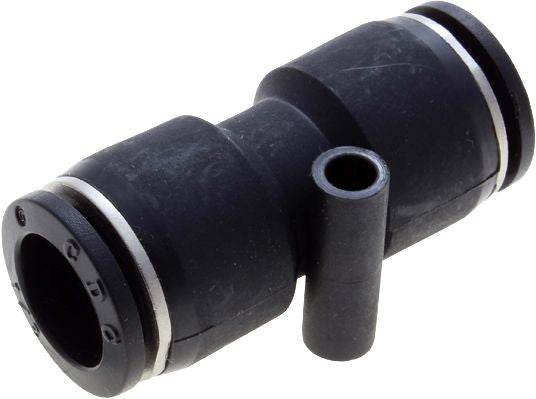

Push-to-Connect Union, PBT Resin, 3/16 x 3/16"
Couldn't load pickup availability
Push-to-Connect Elbow, PBT Resin, 6mm x 1/4"
Couldn't load pickup availability
Push-to-Connect Union Elbow, PBT Resin, 1/4 x 1/4"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Product Description
The nickel-plated brass push-to-connect fittings are suitable for compressed air (lubricated or non-lubricated). The fitting is designed to perform in particularly harsh (e.g. weld-splatter) or abusive (e.g. steel-toed boot) environments. Compatible with polyurethane and nylon tubing. Metal tubing may be used with specific preparation. For applications where the fitting is exposed to aggressive environments. Legris uses high phosphorous electroless nickel-plating for the nickel-plated brass push-to-connect fitting range. The electroless nickel-plating has a dull, flat finish. It adheres to more of the surface, such as in the root of the threads and grooves of the collet. It has increased resistance to water, harsh detergents and other aggressive fluids and environments. As a result, the nickel-plated brass push-to-connect series offers superior chemical, corrosion and abrasion resistance. The nickel-plated brass push-to-connect series utilizes a metal release button more appropriate for harsh and abusive environments.• All items in the nickel-plated brass push-to-connect range are silicone free
• Working temperature: 5°F to 180°F
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• FDA chemical nickel-plated brass
• Construction:
– Body: Electroless nickel-plated brass
– Backup washer: Electroless nickel-plated brass
– Collet technology: Electroless nickel-plated brass
– O-ring: Nitrile
– Base: Electroless nickel-plated brass with thread sealant on tapered components
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 28275P |
|---|---|
| Manufacturer Model #: | 3675 56 11 96 |
| Style | Nickel-Plated Brass Push-To-Connect |
| Configuration | Male Connector |
| Tube Size | 1/4 " |
| Thread Size | 1/8 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass |
| Wrench Size | 13 mm |
| Internal Hex Size | 4 mm |
| Thread Length | 0.30 " |
| Working Pressure | 290 PSI |
| Temperature Range | 5 to 180 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
