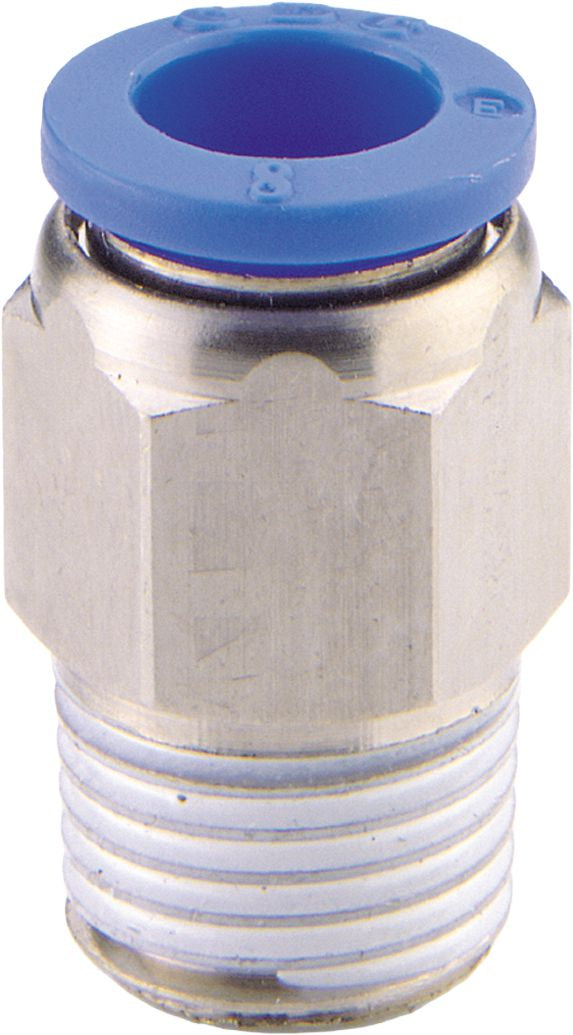

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4", Tube x Male NPT, 150 PSI Working Pressure
(Pack of
5)
SKU:86752 Item#: 86752
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
– Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
– Gripping Ring: 301 stainless steel
– Release Ring: Acetal plastic
– O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Frequently Bought Together
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 3/8"
Couldn't load pickup availability
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass, 4mm x 1/4"
Couldn't load pickup availability
Merchant Coupling Steel 3/8-18 x 3/8-18
Couldn't load pickup availability
Hose Clamp 304 SS 1-9/16 to 2-1/2"
Couldn't load pickup availability
Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 4mm x M5
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
– Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
– Gripping Ring: 301 stainless steel
– Release Ring: Acetal plastic
– O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 86752 |
|---|---|
| Configuration | Male Connector |
| Tube Size | 1/4 " |
| Thread Size | 1/4 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 14 mm |
| Internal Hex Size | .16 " |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.15 lb |
