Home Hydraulics Fittings Industrial Tubing Push-to-Connect Fixed Elbow, Polyoxymethlene, 3/8 x 3/8"
Advanced Technology Products (ATP)

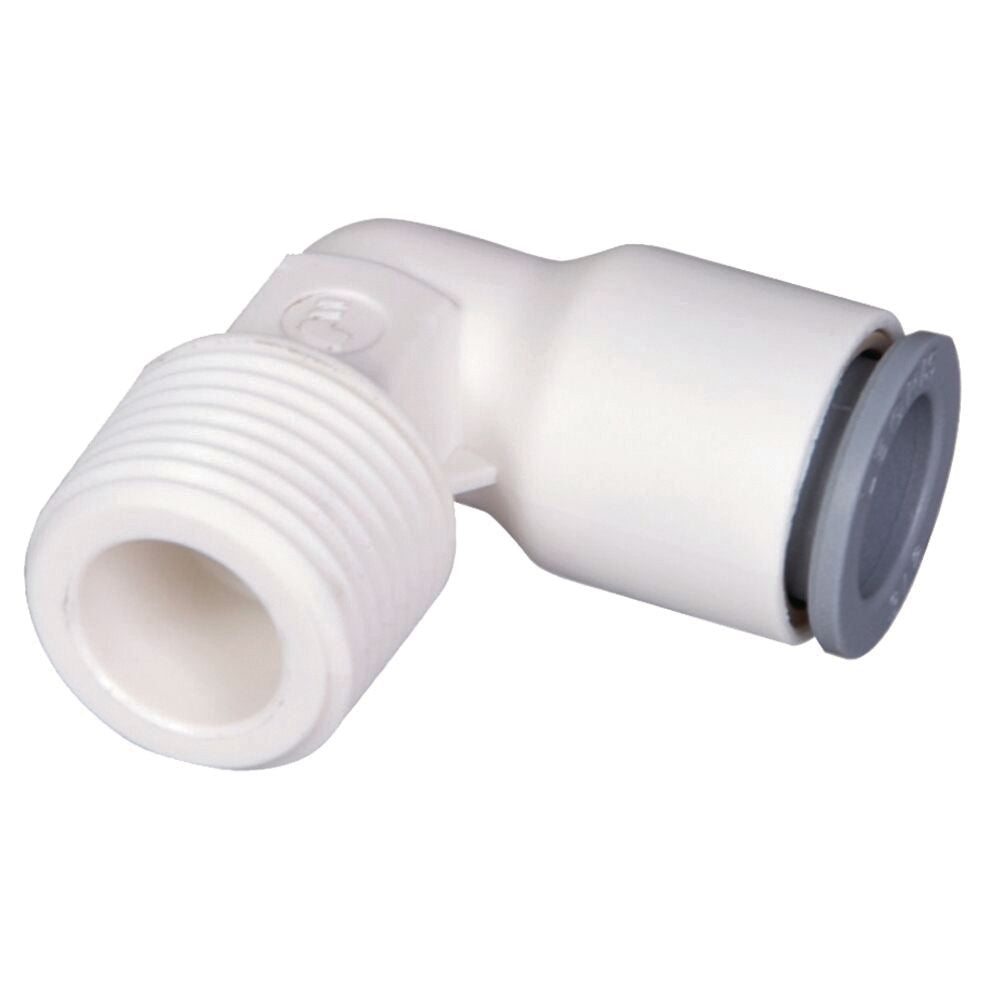

Push-to-Connect Fixed Elbow, Polyoxymethlene, 3/8 x 3/8
Push-to-Connect Fixed Elbow, Polyoxymethlene, 3/8 x 3/8

Push-to-Connect Fixed Elbow, Polyoxymethlene, 3/8 x 3/8", Tube x NPTF, 232 PSI Working Pressure
(Pack of 10)

Item#: 1263324

Lawson Products

Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process

Read More

Catalog page#: 9-40

Frequently Bought Together

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"

Item#: 55737
Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 1/4

Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 5/32" x 10-32

Item#: 54441
Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 6mm, Tube, 150 PSI Working Pressure

Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 6mm

Item#: 54399
Push-to-Connect Extension Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Push-to-Connect Extension Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"

Item#: 56118
Push-to-Connect Fixed Elbow, Polyoxymethlene, 1/4 x 1/4

Push-to-Connect Fixed Elbow, Polyoxymethlene, 1/4 x 1/4"

Item#: 1593578
Push-to-Connect Fixed Elbow, Polyoxymethlene, 1/4 x 1/8

Push-to-Connect Fixed Elbow, Polyoxymethlene, 1/4 x 1/8"

Item#: 1593604
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"

Item#: 86761
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"

Item#: 62199
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"

Item#: 87622
Forged Body Ball Valve Brass 2 x 2

Forged Body Ball Valve Brass 3/4 x 3/4"

Item#: 63137
Merchant Coupling Steel 3/8-18 x 3/8-18, Merchant Coupling, Steel, Black, Schedule 40, 3/8-18 x 3/8-18

Merchant Coupling Steel 1/8-27 x 1/8-27

Item#: 8635
Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27, Pipe Street Elbow, Brass, 90°, 1/8-27 x 1/8-27, Male NPT x Female NPT, 1200PSI

Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27

Item#: 5315
DOT Connector Male Brass 3/8 x 3/8-18, DOT Air Brake Push to Connect Connector, Male, Brass, 3/8 x 3/8-18, Tube x Pipe

DOT Connector Male Brass 1/4 x 1/4-18

Item#: 57505
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Pipe Coupling Brass 3/8-18 x 3/8-18

Item#: 5290
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18, Pipe Street Elbow, Brass, 45°, 3/8-18 x 3/8

Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18

Item#: 5314
Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 6mm, Tube, 150 PSI Working Pressure

Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 6mm

Item#: 54399
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 3/8"

Item#: 54413
Nylon Hose Guard 0.91

Nylon Hose Guard 0.91" ID x 25' Length

Item#: 96561
Self-Drilling Screw Hex Head #6-20 x 1/2

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539
SAE Flat Washer Thru-Hardened Steel 5/16

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436
USS Flat Washer Thru-Hardened Steel 5/16

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446

Product Description

Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process

Technical Specifications

Item#: 1263324
Configuration Fixed Elbow
Tube Size 3/8 "
Thread Size 3/8 "
Thread Style NPTF
Material Polyoxymethlene
Wrench Size 1/2 "
Working Pressure 232 PSI
Temperature Range 32 to 158 °F
UNSPSC #: 40183100
TAA Compliant: Yes
