Home Hydraulics Fittings Industrial Tubing Push-to-Connect Reducer, Nickel-Plated Brass, 3/8 x 1/2"
Advanced Technology Products (ATP)
Push-to-Connect Reducer, Nickel-Plated Brass, 3/8 x 1/2
Push-to-Connect Reducer, Nickel-Plated Brass, 3/8 x 1/2

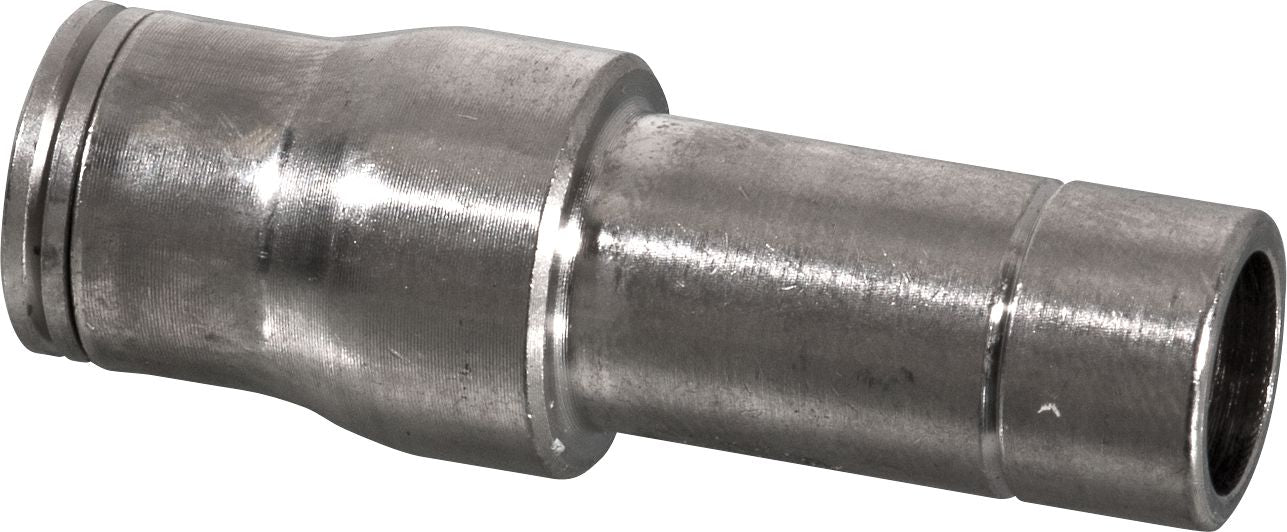

Push-to-Connect Reducer, Nickel-Plated Brass, 3/8 x 1/2", Tube x Tube, 280 PSI Working Pressure
(Pack of 2)

Item#: 17877

Lawson Products

Designed for compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)

Read More
Check Availability

Catalog page#: 9-36

Frequently Bought Together

Inline 1-Way Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4

Inline 1-Way Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32"

Item#: 54444
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 3/8"

Item#: 54413
Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 12 x 12 x 12mm, Tube x Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 6 x 6 x 6mm

Item#: 54388
Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 5/16 x 1/2

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 5/16 x 1/2"

Item#: 62233
Push-to-Connect Expander Nylon 3/8 x 1/4

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/8 x 1/4"

Item#: 55740
Push-to-Connect Expander Nylon 3/8 x 1/4

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 5/32 x 1/4"

Item#: 55741
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 10mm x 1/2

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 10mm x 1/2"

Item#: 62244
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"

Item#: 55721
Push-to-Connect Banjo, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Push-to-Connect Banjo, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"

Item#: 56063
Hex Head Plug Brass 1/2-14 Male NPT, Hex Head Plug, Brass, 1/2-14 Male NPT, 1200PSI

Hex Head Plug Brass 3/4-14 Male NPT

Item#: 82257
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18, Pipe Street Elbow, Brass, 45°, 3/8-18 x 3/8

Pipe Street Elbow Brass 45° 1/4-18 x 1/4-18

Item#: 5313
Merchant Coupling Steel 3/8-18 x 3/8-18, Merchant Coupling, Steel, Black, Schedule 40, 3/8-18 x 3/8-18

Merchant Coupling Steel 3/8-18 x 3/8-18

Item#: 8637
Hose Clamp 304 SS 2-13/16 to 3-3/4

Hose Clamp 304 SS 1-9/16 to 2-1/2"

Item#: 86731
Silicone Heater/Coolant Hose Clamp SS 2-1/16 to 3

Silicone Heater/Coolant Hose Clamp 1/2 to 29/32"

Item#: 90782
Quick Disconnect Coupler Steel 1/4

Quick Disconnect Coupler Steel 1/4" x 1/4-18

Item#: 11914
Copper Soft Annealed Tubing 5/16

Copper Soft Annealed Tubing 3/8" OD x 25'

Item#: 5464
Copper Soft Annealed Tubing 5/16

Copper Soft Annealed Tubing 1/4" OD x 25'

Item#: 5462
Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 4mm x M5, Miniature Meter Out Flow Control Regulator

Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 4mm x M5

Item#: 62248
Lock Washer Alloy Steel 1/2

Lock Washer Alloy Steel 3/8"

Item#: A530
SAE Flat Washer Thru-Hardened Steel 3/8

SAE Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88437
Hex Nut Grade 5 Steel 5/8-18, ANSI B18.2.2 Hex Nut, Grade 5, Steel, Zinc Finish, Fine Thread, 15/16

Hex Nut Grade 5 Steel 3/8-16

Item#: FA95679

Product Description

Designed for compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)

Technical Specifications

Item#: 17877
Style Nickel-Plated Brass Push-To-Connect
Configuration Plug-In Reducer
Tube Size 3/8 x 1/2 "
Material Nickel-Plated Brass
Working Pressure 280 PSI
Temperature Range -4 to +176 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.15 lb
