Home Hydraulics Fittings Industrial Tubing Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/4 x 1/2"
Advanced Technology Products (ATP)

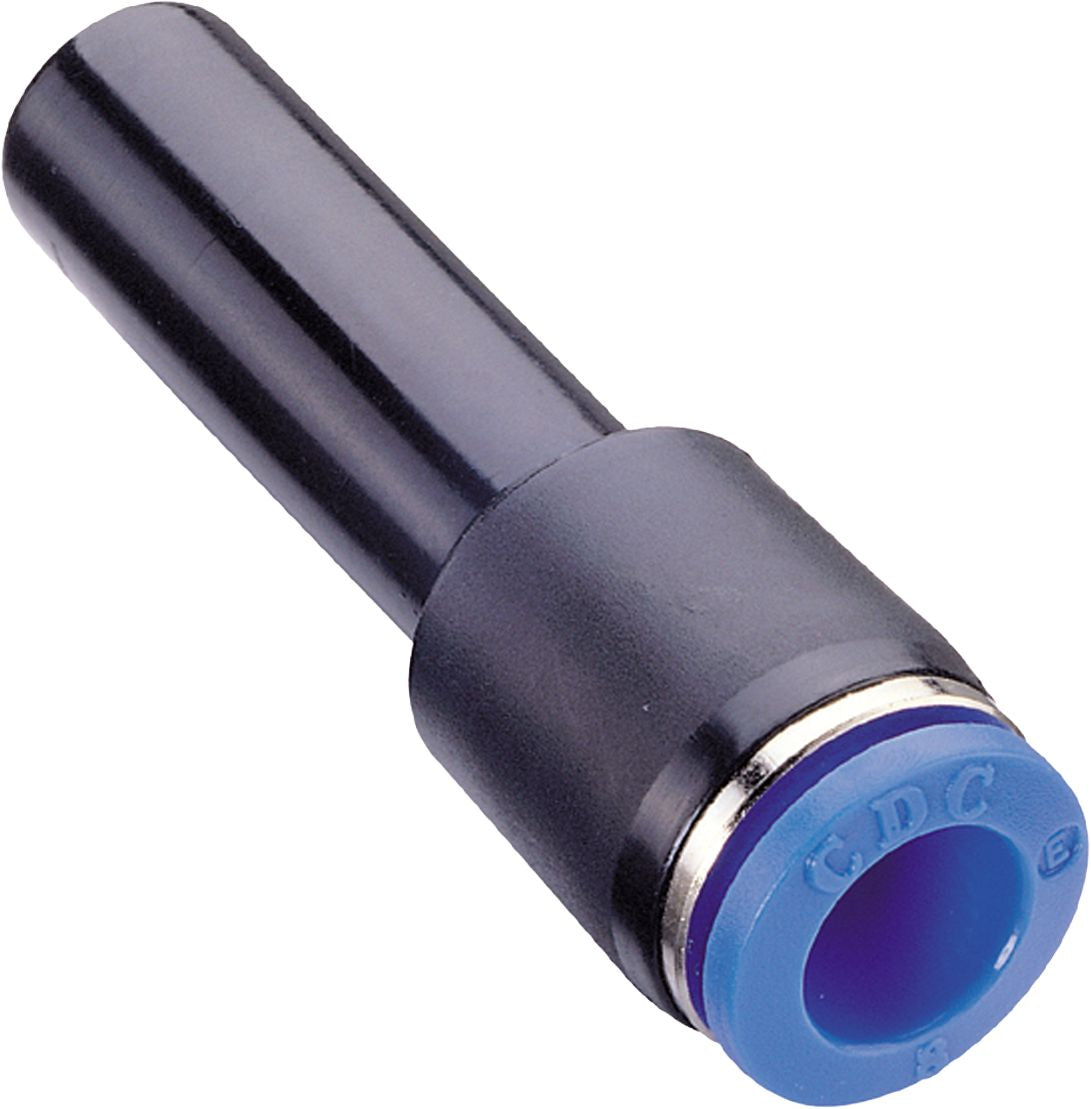

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/4 x 1/2
Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/4 x 1/2

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/4 x 1/2", Tube x Tube, 150 PSI Working Pressure
(Pack of 2)

Item#: 55738

Lawson Products

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

Catalog page#: 9-34

Frequently Bought Together

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 6 x 6mm, Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 6 x 6mm

Item#: 98209
Tubing Cutter 1/8 to 1/2

Tubing Cutter 1/8 to 1/2"

Item#: 87666
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32"

Item#: 86780
Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 3/8 x 1/2

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 3/8 x 1/2"

Item#: 55739
Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/8 x 1/4

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/8 x 1/4"

Item#: 55731
Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 6 x 10mm, Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 6 x 10mm

Item#: 56072
Nylon Metric Tubing 8mm OD x 25m Natural, Industrial Metric Tubing, Nylon, 8mm OD x 6mm ID, 25m Length

Nylon Metric Tubing 8mm OD x 25m Natural

Item#: 98255
PVC Industrial Tubing, 1/4

PVC Industrial Tubing, 1/4" ID x 100' Clear

Item#: 90337
PVC Industrial Tubing, 1/4

PVC Industrial Tubing, 1/2 ID x 100' Clear

Item#: 90340
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Pipe Coupling Brass 3/8-18 x 3/8-18

Item#: 5290
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18, Pipe Street Elbow, Brass, 45°, 3/8-18 x 3/8

Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18

Item#: 5314
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Pipe Coupling Brass 1/4-18 x 1/4-18

Item#: 5289
Super 77 Miniature Hose Clamp SS 7/32 to 5/8

Super 77 Miniature Hose Clamp SS 7/32 to 5/8"

Item#: 86327
Quick Disconnect Plug Steel 1/4

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: 11915
Hex Head Plug Brass 1/2-14 Male NPT, Hex Head Plug, Brass, 1/2-14 Male NPT, 1200PSI

Hex Head Plug Brass 3/8-18 Male NPT

Item#: 5364
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4"

Item#: 86762
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"

Item#: 86782
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16"

Item#: 87640
USS Flat Washer Thru-Hardened Steel 7/8

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: 88445
USS Flat Washer Thru-Hardened Steel 7/8

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: 88447
Butt Connector 16 to 14 AWG Blue, Butt Connector, 2-Piece Heat Seal, Polyolefin Insulated, 16 to 14 AWG, 1.45

Butt Connector 16 to 14 AWG Blue

Item#: 92823

Product Description

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 55738
Configuration Reducer
Tube Size 1/4 x 1/2 "
Material Nickel-Plated Brass/PBT Resin
Working Pressure 150 PSI
Temperature Range 32 to 140 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.05 lb
