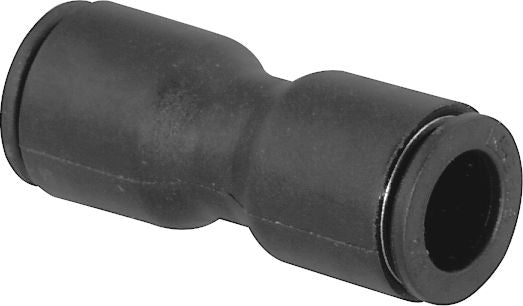

Push-to-Connect Union Nylon 1/8 x 1/8"
(Pack of
5.0)
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Frequently Bought Together
Hex Bushing Steel 3/8-18 x 1/4-18
Couldn't load pickup availability
Pipe Nipple Steel Black 1/2-14 x 1/2-14
Couldn't load pickup availability
Pipe Hex Nipple Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
DOT Union Brass 1/2 x 1/2"
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
Super 77 Hose Clamp SS 1/2 to 1-1/8"
Couldn't load pickup availability
Nylon Hose Guard 1.42" ID x 25' Length
Couldn't load pickup availability
Nylon Tubing 5/32" OD x 100'
Couldn't load pickup availability
Push-to-Connect Connector Brass 5/16 x 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 86779 |
|---|---|
| Style | LF3000 |
| Configuration | Union |
| Tube Size | 1/8 " |
| Material | Nylon Body |
| Working Pressure | 290 PSI |
| Temperature Range | -4 to +175 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
Product Restrictions
