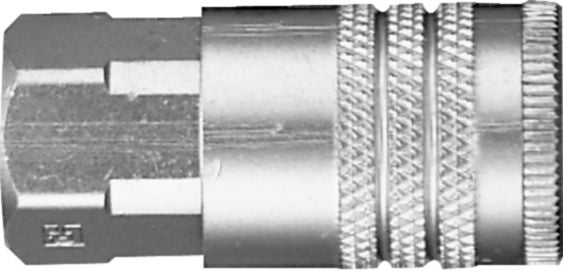

Heavy-Duty Quick Disconnect Coupler, Brass, ARO 210, Female NPTF, 1/4" Body Size, 3/8-18" Thread Size
(Pack of
1)
SKU:1167269 Item#: 1167269
These heavy-duty sleeve-type couplers feature a built-in sleeve guard to minimize accidental disconnect. The plugs feature a ball swivel design to enhance air line flexibility and help prevent repetitive motion injury. Couplers feature stainless steel coupling balls and springs for corrosion resistance.
• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
ARO 210 Series Design
Frequently Bought Together
Quick Disconnect Coupler Steel 3/8" x 3/8-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 3/8-18
Couldn't load pickup availability
Coupler, Schrader, 1/4'' Body, 1/4-18 Female NPT, Aluminum
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Hose Mender Brass 3/16 x 3/16"
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Couldn't load pickup availability
Pipe Coupling Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Barb-Lok Hose End 3/8" (-6) x 3/8-18 (-6)
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Product Description
These heavy-duty sleeve-type couplers feature a built-in sleeve guard to minimize accidental disconnect. The plugs feature a ball swivel design to enhance air line flexibility and help prevent repetitive motion injury. Couplers feature stainless steel coupling balls and springs for corrosion resistance.• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
ARO 210 Series Design
Technical Specifications
| Item#: | 1167269 |
|---|---|
| Manufacturer Model #: | 2MF3-B |
| Type | Coupler |
| Style | ARO 210 |
| Body Size | 1/4 " |
| Thread Style | Female NPT |
| Thread Size | 3/8-18 |
| Working Pressure | 300 PSI |
| Material | Brass |
| Length | 2.05 " |
| Seal Material | Nitrile |
| Hex Size | 13/16 " |
| Locking Mechanism | 4 Ball |
| Flow | 25 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
