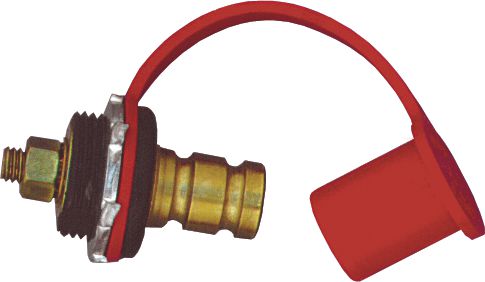

Remote Battery Terminal Jumper, Red, Positive Polarity, Brass, 13/16" Diameter, 1-1/8" Long, 3/8" Stud Size, 16 TPI
(Pack of
1)
SKU:52823 Item#: 52823
• Permits direct connection to the battery at a more accessible location, inside or outside the vehicle
• Accepts standard jumper cable clamps
• Rugged solid brass contact post, 13/16" dia., 1-1/8" long
• 3/8–16 threaded brass stud
• Includes brass hex nut and washer
• Units allow optional mounting through either round or double D-shaped holes
• Designed for all 6V – 36V (DC) battery-equipped vehicles
• For panel thicknesses through 5/16" (7.93mm)
When connecting the electrical cable to the 3/8" dia. stud, it is recommended that the lockwasher be positioned under the cable terminal.
Do not make electrical connections until the unit(s) is securely mounted in the panel.
Frequently Bought Together
Battery Terminal Protector 2/1 AWG Straight
Couldn't load pickup availability
Battery Terminal Protector 1/0-3/0 AWG Right Elbow
Couldn't load pickup availability
Battery Terminal Protector 1/0-3/0 AWG Left Elbow
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud
Couldn't load pickup availability
DT Series Receptacle 13A 2 Contacts
Couldn't load pickup availability
Connector Housing 20A 2-Wire Shroud
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 8 AWG Red #10
Couldn't load pickup availability
Extreme-Duty Battery Cable Lug 1/0 AWG Black 3/8"
Couldn't load pickup availability
DT Series Pin Wedgelock 13A 4 Contacts
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Product Description
• Permits direct connection to the battery at a more accessible location, inside or outside the vehicle• Accepts standard jumper cable clamps
• Rugged solid brass contact post, 13/16" dia., 1-1/8" long
• 3/8–16 threaded brass stud
• Includes brass hex nut and washer
• Units allow optional mounting through either round or double D-shaped holes
• Designed for all 6V – 36V (DC) battery-equipped vehicles
• For panel thicknesses through 5/16" (7.93mm)
When connecting the electrical cable to the 3/8" dia. stud, it is recommended that the lockwasher be positioned under the cable terminal.
Do not make electrical connections until the unit(s) is securely mounted in the panel.
Technical Specifications
| Item#: | 52823 |
|---|---|
| Style | Remote Battery Jumper |
| Type | Terminals |
| Color | Red |
| Polarity | Positive |
| Description | Jumper Terminal - Positive |
| UNSPSC #: | 78181500 |
| TAA Compliant: | Yes |
| Weight: | 0.41 lb |
