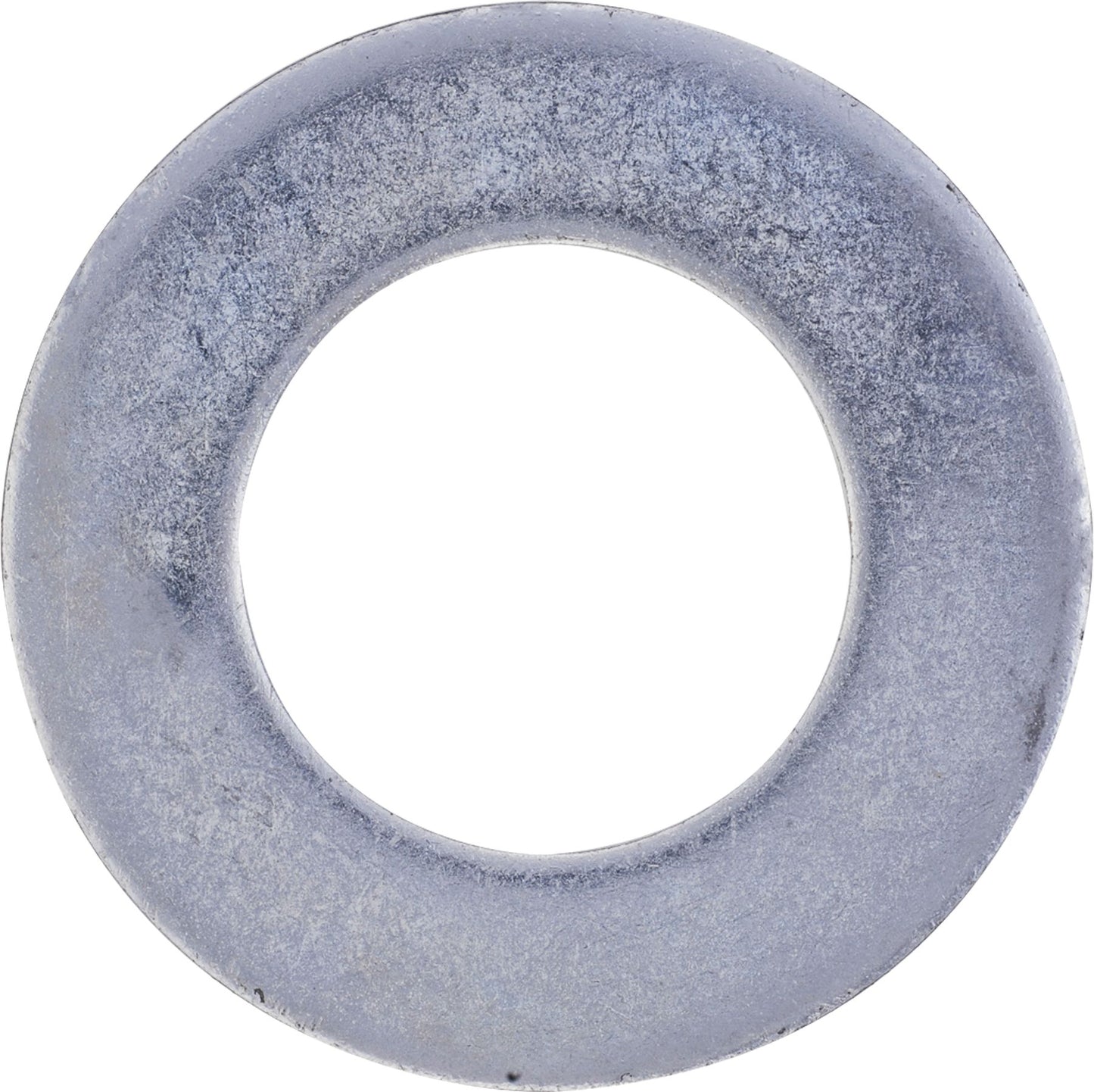

SAE Structural Flat Washer High Strength 3-3/8"
(Pack of
5)
• Medium carbon steel
• Heat-treated, quenched and tempered
• Zinc-plated
• SAE manufactured to ASTM Specification F436
• Designed for use with Grade 5 and Grade 8 Cap Screws
Frequently Bought Together
Hex Nut Grade 8 Steel 5/16-18
Item#: FA68401
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/2-13
Item#: FA95681
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"
Item#: 634
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Item#: 2539
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Item#: FA88447
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Item#: 87512
Couldn't load pickup availability
Structural Flat Washer 2"
Item#: 1462963
Couldn't load pickup availability
Structural Flat Washer 1-15/32"
Item#: 21580
Couldn't load pickup availability
Structural Flat Washer 11/16"
Item#: 1155039
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/4"
Item#: 88452
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Item#: FA88436
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 7/16"
Item#: FA504
Couldn't load pickup availability
Product Description
• Medium carbon steel• Heat-treated, quenched and tempered
• Zinc-plated
• SAE manufactured to ASTM Specification F436
• Designed for use with Grade 5 and Grade 8 Cap Screws
Technical Specifications
| Item#: | 58871 |
|---|---|
| Nominal Size | 1-3/4 " |
| Finish | Bright Zinc |
| Material | Carbon Steel |
| I.D. | 1-7/8 " |
| O.D. | 3-3/8 " |
| Thickness | 3/16 " |
| Specifications | ASTM F436 |
| Minimum Thickness | 0.178 " |
| Maximum Thickness | 0.280 " |
| Type | Structural Flat Washer |
| UNSPSC #: | 31161807 |
| TAA Compliant: | Yes |
| Weight: | 1.65 lb |
