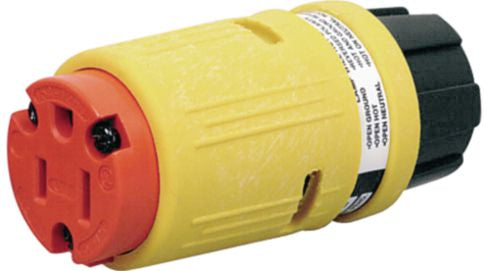

SAF-T Ground and Continuity Monitor Connector, 15 Amps, 125 Volts, 0.33 to 0.64" Cord Diameter, NEMA 5-15R
(Pack of
4)
SKU:P26002 Item#: P26002
• Allows visual inspection of wiring polarity and ground continuity
• Excellent safety plug for use on all portable equipment
• Indicator lamps light up when there is a ground connection and the plug has been wired correctly
• Will not light if any of the following conditions exist: open hot; open neutral; open ground; reversed hot and neutral; reversed hot and ground; hot on neutral
• For use on cord diameters 0.330" to 0.640"
Frequently Bought Together
MINI Fuse 15A Blue
Couldn't load pickup availability
Heat Shrink Tubing 18 to 12 AWG Black
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
Ground Fault Receptacle 15A 125V Ivory
Couldn't load pickup availability
E-Z Wire Straight Blade Plug Light Duty Brown
Couldn't load pickup availability
Industrial Duty SAF-T Connect Plug 20A 125V
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Rocker Switch DPST 25A 12VDC On-Off
Couldn't load pickup availability
Rocker Switch SPST 25A 12VDC Off/On-Red
Couldn't load pickup availability
Toggle Switch SPDT 25A 12VDC
Couldn't load pickup availability
Product Description
• Allows visual inspection of wiring polarity and ground continuity• Excellent safety plug for use on all portable equipment
• Indicator lamps light up when there is a ground connection and the plug has been wired correctly
• Will not light if any of the following conditions exist: open hot; open neutral; open ground; reversed hot and neutral; reversed hot and ground; hot on neutral
• For use on cord diameters 0.330" to 0.640"
Technical Specifications
| Item#: | P26002 |
|---|---|
| Style | Saf-T-Connect Ground and Continuity Monitor plugs and connectors |
| Volts | 125 |
| Description | Connector |
| NEMA Configuration | 5-15R |
| Cord Diameter | 0.330 - 0.640 " |
| Approvals | UL |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 1.19 lb |
Product Restrictions
