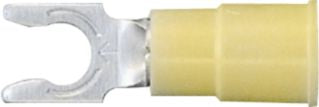

Snap Locking Spade Terminal, Vinyl Insulated, 12 to 10 AWG, #10 Stud Size, Yellow
(Pack of
50)
SKU:82938 Item#: 82938
• Vinyl-insulated, butted-seam terminal with a single crimp design and rigid molded vinyl-insulated sleeve with a flared opening for easy wire insertion
• Crimp portion of sleeve provides excellent electrical contact
• A quality vinyl-insulated terminal for use when the flexibility and strength of nylon is not required
Vinyl-Insulated
• Won’t drop off the stud when the nut loosens• Spring-like tongue locks in place around the stud even when mount screw is not tightened• Extra force is required to remove from stud• Manufactured from high-grade copper for the highest conductivity• Annealed to flow freely under crimping pressure for best connection• Electro-tin-plated for greatest corrosion resistance• 600V
Not UL listed or CSA certified
Couldn't load pickup availability
Catalog page#: 17-24
Frequently Bought Together
Socket Contact 20-16 AWG Size 16
Couldn't load pickup availability
ATO/ATC Fuse 30A Green
Couldn't load pickup availability
Right Angle Safety LED Light 3x AA 7.44"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Block Spade Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Block Spade Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Snap Spade Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Female Quick Slide Terminal 12 to 10 AWG Clear
Couldn't load pickup availability
Product Description
• Vinyl-insulated, butted-seam terminal with a single crimp design and rigid molded vinyl-insulated sleeve with a flared opening for easy wire insertion• Crimp portion of sleeve provides excellent electrical contact
• A quality vinyl-insulated terminal for use when the flexibility and strength of nylon is not required
Vinyl-Insulated
• Won’t drop off the stud when the nut loosens• Spring-like tongue locks in place around the stud even when mount screw is not tightened• Extra force is required to remove from stud• Manufactured from high-grade copper for the highest conductivity• Annealed to flow freely under crimping pressure for best connection• Electro-tin-plated for greatest corrosion resistance• 600V
Not UL listed or CSA certified
Technical Specifications
| Item#: | 82938 |
|---|---|
| Type | Crimp |
| Style | Vinyl-Insulated |
| Wire Gauge | 12-10 AWG |
| Stud Size | 10 |
| Color | Yellow |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.21 lb |
