Home Fasteners Socket Head Cap Screw Alloy Steel 1-1/4-7 x 6"
Fasteners

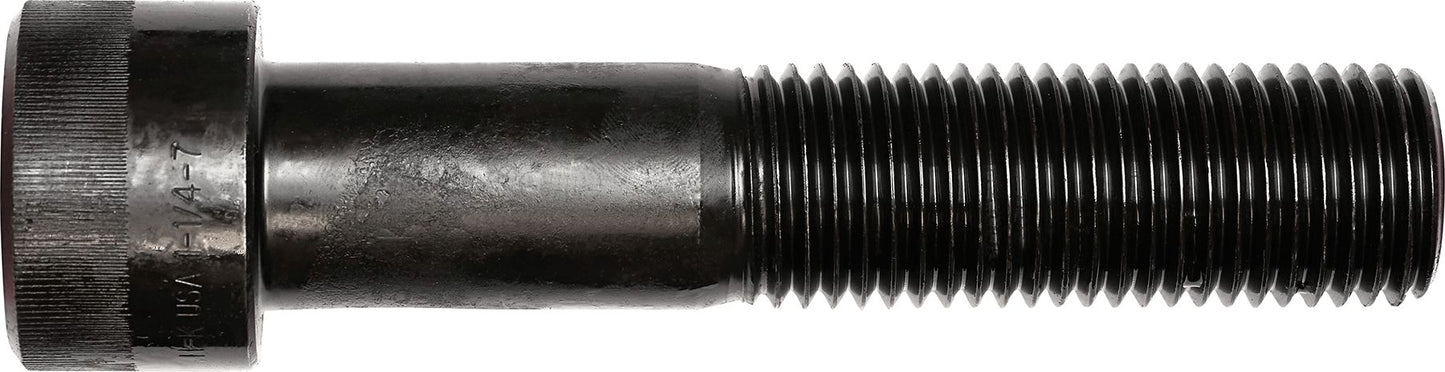

Socket Head Cap Screw, Alloy Steel, Premium Black Oxide Finish, Coarse Thread, 7/8" Hex Key, 1-1/4-7 x 6"
(Pack of 1)

Item#: 51762

Lawson Products

• Full product traceability
• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications

Read More
Check Availability

Catalog page#: 4-3

Frequently Bought Together


SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446

Waterproof Work Aqua Light 66 LED

Item#: DY80000105

Butt Connector 22 to 18 AWG Red

Item#: 92822

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050

Socket Head Cap Screw Grade 12.9 M10-1.5 x 30mm

Item#: 80519

Socket Head Cap Screw A2 SS M6-1 x 20mm

Item#: 27644

Socket Head Cap Screw Alloy Steel 3/8-16 x 1-1/2"

Item#: 64170

Flat Head Socket Cap Screw Steel 3/8-16 x 1-1/2"

Item#: 3637

Flat Head Socket Cap Screw Steel 3/8-16 x 1-1/4"

Item#: 3635

Socket Head Cap Screw Grade 12.9 M10-1.5 x 30mm

Item#: 80519

Product Description

• Full product traceability
• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications

Technical Specifications

Item#: 51762
Diameter 1-1/4 "
Thread Pitch 7
Length 6 "
Material Alloy Steel
Finish Black Oxide
Head Style Socket
Tensile Strength 170,000 PSI
Thread Coarse
Type Socket Head Cap Screw
Key Size 7/8 "
Drive Hex
Size 1-1/4-7X6
UNSPSC #: 31161518
TAA Compliant: Yes
Weight: 2.65 lb
