Home Fasteners Socket Screws Socket Head Cap Screws Socket Head Cap Screw Alloy Steel 5/8-18 x 2-1/2"
Fasteners

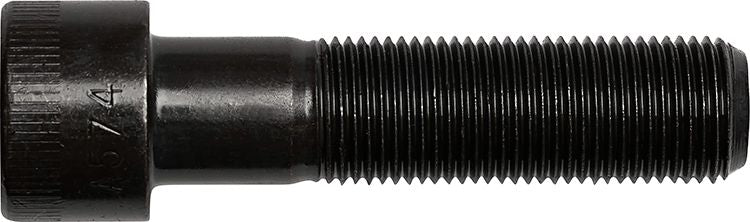

Socket Head Cap Screw, Alloy Steel, Premium Black Oxide Finish, Fine Thread, 1/2" Hex Key, 5/8-18 x 2-1/2"
(Pack of 10)

Item#: 51754

Lawson Products

• Full product traceability
• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications

Read More
Check Availability

Catalog page#: 4-3

Frequently Bought Together


SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439

SAE Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88437

Lock Washer Alloy Steel 3/8"

Item#: A530

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

Socket Head Cap Screw Grade 12.9 M4-0.7 x 10mm

Item#: 80493

Socket Head Cap Screw Grade 12.9 M6-1 x 25mm

Item#: 80506

Socket Head Cap Screw Grade 12.9 M6-1 x 40mm

Item#: 80508

Socket Head Cap Screw Alloy Steel 1/4-20 x 3/4"

Item#: 3512

Socket Head Cap Screw A2 SS M8-1.25 x 20mm

Item#: 27656

Socket Head Cap Screw Grade 12.9 M4-0.7 x 10mm

Item#: 80493

Product Description

• Full product traceability
• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications

Technical Specifications

Item#: 51754
Diameter 5/8 "
Thread Pitch 18
Length 2-1/2 "
Material Alloy Steel
Finish Black Oxide
Head Style Socket
Tensile Strength 170,000 PSI
Thread Fine
Type Socket Head Cap Screw
Key Size 1/2 "
Drive Hex
Size 5/8-18X2-1/2
UNSPSC #: 31161518
TAA Compliant: Yes
Weight: 2.92 lb
