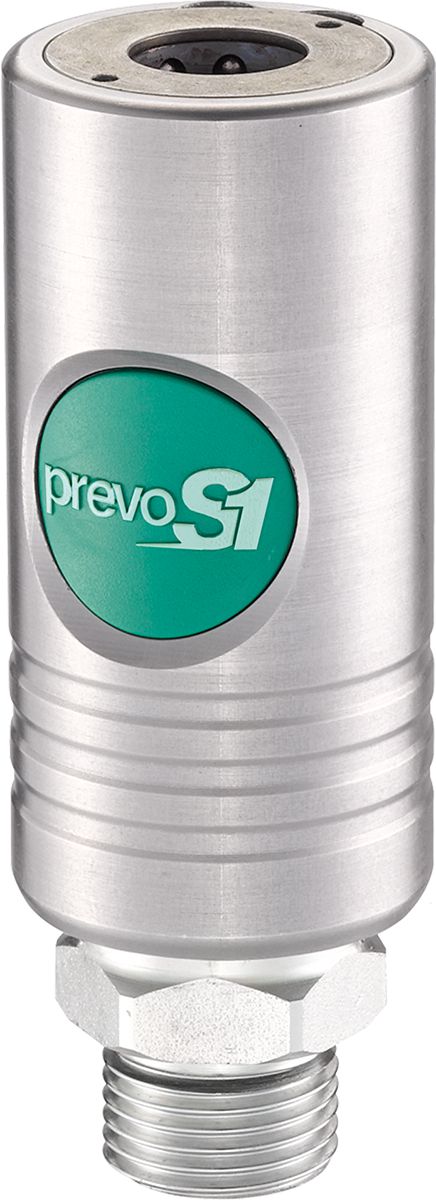

Stainless Steel High Flow Safety Push-Button Safety Coupler 1/2" Body x 3/8" MNPT
(Pack of
1)
SKU:1637137 Item#: 1637137
The prevoS1 coupling meets the top level of quality standards required in the professional industry. Prevost prevoS1 couplers are synonymous with top of the line quality, extended service life, advanced technology, safety and efficiency. The prevoS1 couplings are unrivalled in the market with quality, patent and protected technology.
• Stainless steel body material: tough, high resistance couplings suited to the most challenging conditions for which this type of product may be required, including violent impacts, crushing, dirty or damp environments, etc.
• One push control to decompress the system and disconnect in complete safety: eliminates hose whip to protect the user, surrounding tools and equipment (ISO 4414 standard)
• Quick and effortless coupling: easy to connect, with no risk of damaging the internal mechanism
• Swivel body creates a quick assembly and optimal positioning: cost savings from increased productivity and decreased labor requirements
• Anti-static: conducts electricity to avoid problems related to static electricity (ex. dust attracted to paint/polish or electronic work surfaces)
• Resistant to abrasion, vibrations, corrosion, impacts and crushing: reinforced Polymer body is capable of withstanding the harsh conditions frequently found in production environments
• Color coded buttons make the wide selection of international profiles easy to identify: this system reduces the risk of connection errors which may cause damages or accidents
• ATEX classification 1 and 2 (gas) and 21 and 22 (dust)
• Silicone free
• Anti-static construction
• Stainless steel body (17% chromium)
• Nitrile NBR gasket
• Pressure range: 29 to 232 psi (not suitable for vacuum)
• Temperature: +5°F to +158°F (-15°C to 70°C)
• Other components: steel or aluminum with RoHS compliant anti-corrosion treatment
Applications
• All connections
• Tough locations
• Harsh environments
• Maintenance of industrial vehicles
• Heavy industry and manufacturing
• Agriculture
• Public works
• Mines and quarries
Frequently Bought Together
Quick Disconnect Plug Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 3/8-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 3/8" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 1/2" x 3/8-18
Couldn't load pickup availability
Water Line Coupling Brass 3/4"
Couldn't load pickup availability
Hose Clamp 304 SS 1-5/16 to 2-1/4"
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
8Pc Metric Flare Nut Wrench Set
Couldn't load pickup availability
8Pc SAE Mini Combination Wrench Set
Couldn't load pickup availability
Cross-Over Socket Set, Metric, 3/8" Drive, 10pc
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 1/2" x 3/8-18
Couldn't load pickup availability
Plastic Covered Primary Wire 18 AWG 100' Red
Couldn't load pickup availability
Plastic Covered Primary Wire 16 AWG 100' White
Couldn't load pickup availability
Straight Barrel Battery Terminal 2/0 AWG Negative
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Product Description
The prevoS1 coupling meets the top level of quality standards required in the professional industry. Prevost prevoS1 couplers are synonymous with top of the line quality, extended service life, advanced technology, safety and efficiency. The prevoS1 couplings are unrivalled in the market with quality, patent and protected technology.• Stainless steel body material: tough, high resistance couplings suited to the most challenging conditions for which this type of product may be required, including violent impacts, crushing, dirty or damp environments, etc.
• One push control to decompress the system and disconnect in complete safety: eliminates hose whip to protect the user, surrounding tools and equipment (ISO 4414 standard)
• Quick and effortless coupling: easy to connect, with no risk of damaging the internal mechanism
• Swivel body creates a quick assembly and optimal positioning: cost savings from increased productivity and decreased labor requirements
• Anti-static: conducts electricity to avoid problems related to static electricity (ex. dust attracted to paint/polish or electronic work surfaces)
• Resistant to abrasion, vibrations, corrosion, impacts and crushing: reinforced Polymer body is capable of withstanding the harsh conditions frequently found in production environments
• Color coded buttons make the wide selection of international profiles easy to identify: this system reduces the risk of connection errors which may cause damages or accidents
• ATEX classification 1 and 2 (gas) and 21 and 22 (dust)
• Silicone free
• Anti-static construction
• Stainless steel body (17% chromium)
• Nitrile NBR gasket
• Pressure range: 29 to 232 psi (not suitable for vacuum)
• Temperature: +5°F to +158°F (-15°C to 70°C)
• Other components: steel or aluminum with RoHS compliant anti-corrosion treatment
Applications
• All connections
• Tough locations
• Harsh environments
• Maintenance of industrial vehicles
• Heavy industry and manufacturing
• Agriculture
• Public works
• Mines and quarries
Technical Specifications
| Item#: | 1637137 |
|---|---|
| Manufacturer Model #: | ESI 111252 |
| Style | High Flow |
| Body Size | 1/2 " |
| Thread Style | Male NPT |
| Thread Size | 3/8-18 " |
| Working Pressure | 29 to 232 PSI |
| Material | Stainless Steel |
| Seal Material | Nitrile NBR o-ring |
| Standards | ISO 4414 |
| Flow | 142 SCFM |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
| Weight: | 1.07 lb |
