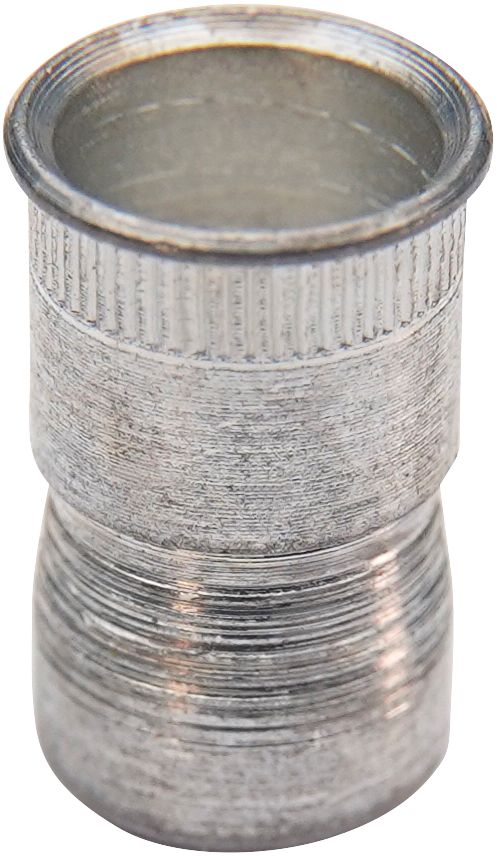

Standard Threaded Insert, Steel, Cadmium Finish, Knurled, Small Flange, Coarse Thread, #6-32, 0.37" Length, 0.2188" Hole
(Pack of
50)
• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Frequently Bought Together
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
10-32x3/8 Blind Cert
Couldn't load pickup availability
Standard Threaded Insert 1/4-28
Couldn't load pickup availability
3/8-16x3/4 Blind Cert
Couldn't load pickup availability
Threaded Insert for Soft Material #10-24
Couldn't load pickup availability
Diamond Grip II Threaded Insert M6-1
Couldn't load pickup availability
Diamond Grip II Threaded Insert 1/4-28
Couldn't load pickup availability
Product Description
• Works in any thickness of material over 0.030"• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Technical Specifications
| Item#: | 81084 |
|---|---|
| Diameter | #6 |
| Thread Pitch | 32 |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Standard Threaded Inserts |
| Body Type | Knurled |
| Hole Size | 0.2188 " |
| Pilot Drill Size | 7/32 " |
| Pilot Drill Number | 84731 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 0.240 " |
| Body Diameter | 0.2185 " |
| Length | 0.370 " |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
