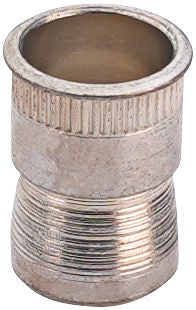

Standard Threaded Insert, Steel, Cadmium Finish, Knurled, Small Flange, Coarse Thread, #8-32, 0.37" Length, 0.25" Hole
(Pack of
50)
• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Frequently Bought Together
Hex Nut Grade 8 Alloy Steel 5/8-11
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
1/4-20 3/16-3/8 Grip Cert
Couldn't load pickup availability
Standard Threaded Insert M10-1.5
Couldn't load pickup availability
Diamond Grip II Threaded Insert #10-24
Couldn't load pickup availability
Threaded Insert Thin Wall #10-24
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head 1/4-20
Couldn't load pickup availability
Product Description
• Works in any thickness of material over 0.030"• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Technical Specifications
| Item#: | 81085 |
|---|---|
| Diameter | #8 |
| Thread Pitch | 32 |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Standard Threaded Inserts |
| Body Type | Knurled |
| Hole Size | 0.2500 " |
| Pilot Drill Size | 1/4 " |
| Pilot Drill Number | 84733 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 0.269 " |
| Body Diameter | 0.2495 " |
| Length | 0.370 " |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.11 lb |
Product Restrictions
