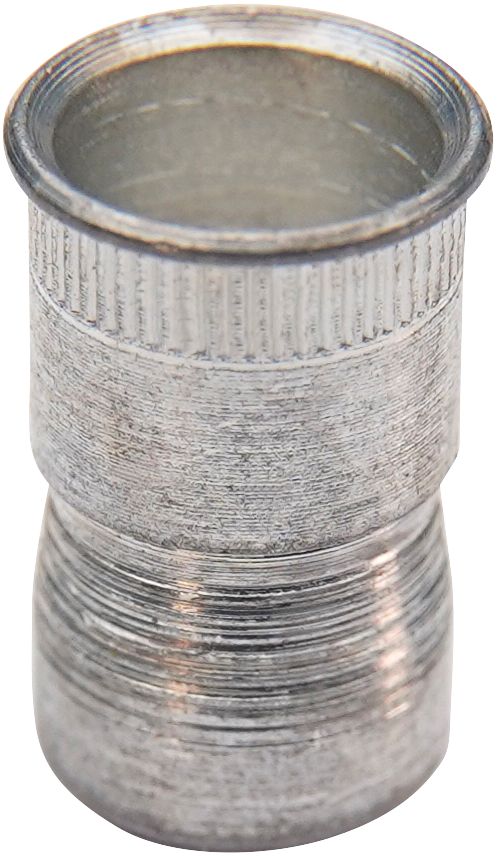

Standard Threaded Insert M6-1
(Pack of
25.0)
• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
10-32x3/8 Blind Cert
Couldn't load pickup availability
Standard Threaded Insert M4-0.7
Couldn't load pickup availability
Standard Threaded Insert #6-32
Couldn't load pickup availability
Standard Threaded Insert 1/4-20
Couldn't load pickup availability
Diamond Grip II Threaded Insert 3/8-16
Couldn't load pickup availability
Diamond Grip II Threaded Insert #8-32
Couldn't load pickup availability
Product Description
• Works in any thickness of material over 0.030"• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Technical Specifications
| Item#: | 85897 |
|---|---|
| Diameter | M6 |
| Thread Pitch | 1.0 mm |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Standard Threaded Inserts |
| Body Type | Knurled |
| Hole Size | 9.52 mm |
| Pilot Drill Size | 3/8 " |
| Pilot Drill Number | 84741 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 10.16 mm |
| Body Diameter | 9.51 mm |
| Length | 13.08 mm |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.18 lb |
