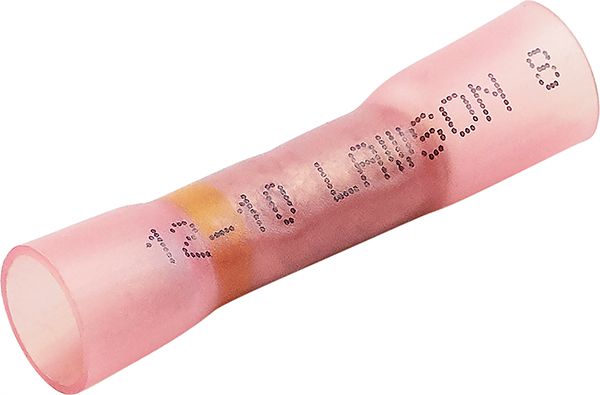

Step-Down Butt Connector, Insulated, 8 to 12/10 AWG, 1.8" Length, Yellow
(Pack of
10)
SKU:KT13699 Item#: KT13699
• Seal and protect electrical connections against failure due to water, moisture, corrosion, vibration and strain
• Dual wall heat shrink tubing pre-shrunk around an electro-tin-plated copper butt splice
• The inner wall adhesive hot-melts into the wire insulation to encapsulate and seal the connection
• Outer wall shrinks to provide strength with flexibility
• Unaffected by most oils, fuels, solvents, chemicals and road salts
• Color-coded, semi-transparent insulation for excellent crimping every time
• Self-seals if accidentally punctured prior to heating
• Tensile strength: 3,200 PSI minimum
• Elongation: 200% minimum• Working voltage: 600V
• Continuous operating temperature: –67°F to +230°F (–55°C to +110°C)
• Minimum shrink temperature: 248°F (120°C)
• Butt connectors have a unique, double-thick insulation for burial, water-exposed, high-stress and vibration applications
Frequently Bought Together
Multi-Wire Butt Connector 20 to 18 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Butt Connector 22 to 24 AWG Clear
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud
Couldn't load pickup availability
Connector Housing 20A 2-Wire Shroud
Couldn't load pickup availability
DT Series Receptacle 13A 2 Contacts
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Step-Down Butt Connector 12 to 10/16 to 14 AWG
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Seal and protect electrical connections against failure due to water, moisture, corrosion, vibration and strain• Dual wall heat shrink tubing pre-shrunk around an electro-tin-plated copper butt splice
• The inner wall adhesive hot-melts into the wire insulation to encapsulate and seal the connection
• Outer wall shrinks to provide strength with flexibility
• Unaffected by most oils, fuels, solvents, chemicals and road salts
• Color-coded, semi-transparent insulation for excellent crimping every time
• Self-seals if accidentally punctured prior to heating
• Tensile strength: 3,200 PSI minimum
• Elongation: 200% minimum• Working voltage: 600V
• Continuous operating temperature: –67°F to +230°F (–55°C to +110°C)
• Minimum shrink temperature: 248°F (120°C)
• Butt connectors have a unique, double-thick insulation for burial, water-exposed, high-stress and vibration applications
Technical Specifications
| Item#: | KT13699 |
|---|---|
| Type | Crimp and Heat Shrink |
| Wire Gauge | 8 to 12-10 AWG |
| Color | Red |
| Length | 1.80 " |
| Full Barrel End | 8 AWG |
| Step-Down Barrel End | 12-10 AWG |
| Full Barrel End Accommodates | One 8 Ga., One 10 and One 12 Ga., or Two 12 Ga. Wires |
| Step-Down Barrel End Accommodates | One 10 Ga., One 12 Ga., Two 14 Ga., or One 14 Ga. and One 16 Ga. Wire |
| Maximum Splice Length | 0.85 " |
| Voltage Rating | 600 V |
| Operating Temperature Range | -67 to 230 °F |
| Shrink Temperature | 248 F |
| Elongation | 200 % |
| Maximum Wire Insulation | 0.310 " |
| Style | Heat Seal Step-Down Butt Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.16 lb |
